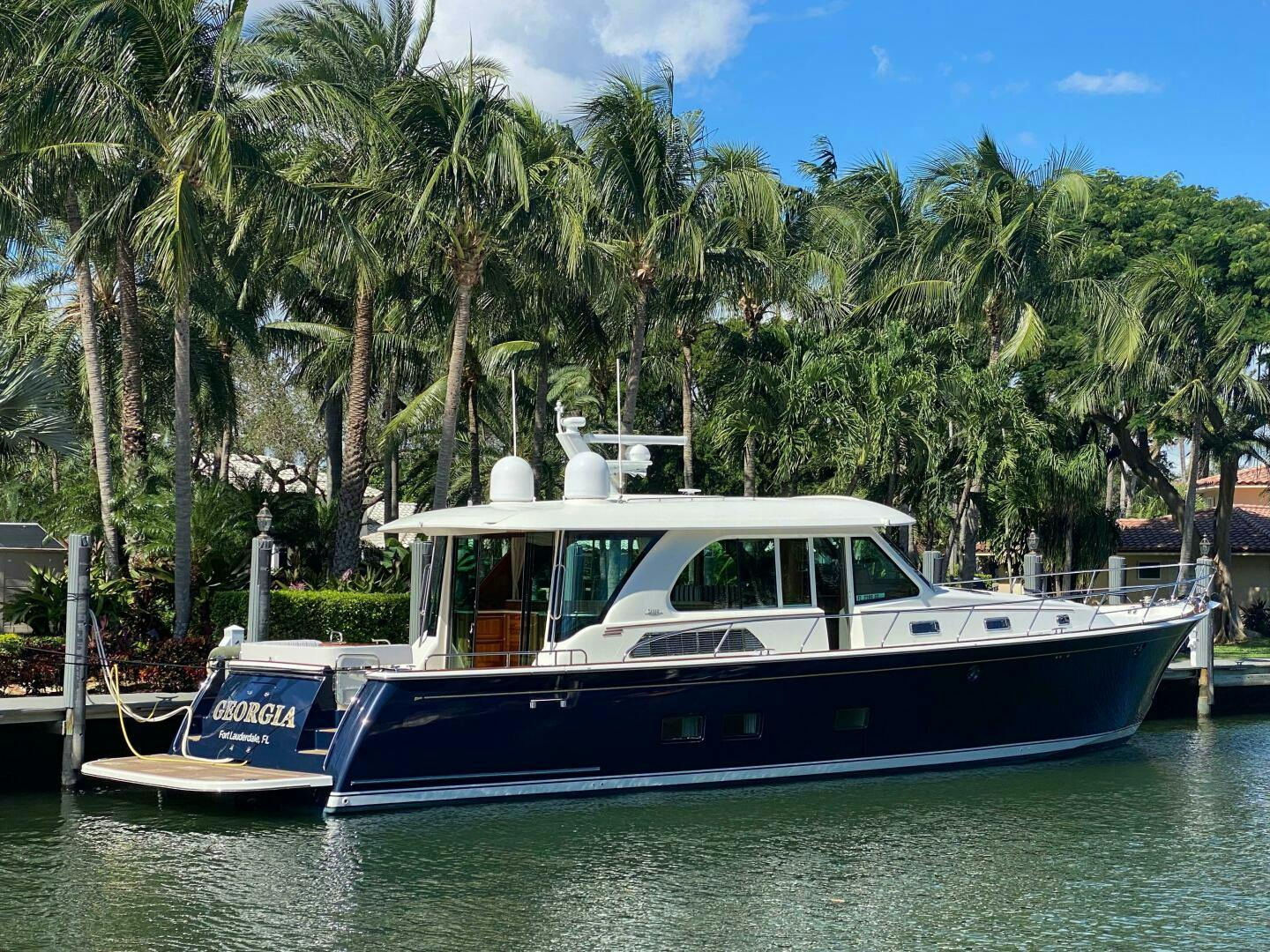

Freedom 66' Sabre 66 Dirigo 2020

SPECIFICATIONS

Length Overall: 73’ 9” 22.48 m

• Length Overall 73'9"
• Hull Length: 67’ 10”
• Beam (overall): 18’ 1”
• Draft: 5’ 1”
• Deadrise (at transom): 16 degrees
• Displacement (half load): 82,500 lbs
• Fuel capacity: 975 usg
• Water capacity: 300 usg
• Holding tank capacity: 120 usg
• Headroom (maximum): 7’ 4”
• Sleeping accommodations: 8 @6’ 8”
• Air Draft (w/mast): 20’ 6”
• Built to CE Category B, NMMA, ABYC and USCG standards

FACTORY OPTIONS

EXTERIOR

• Hull Paint Color: Flag Blue
• Boot Top Color:Sport Yacht White
• Cove Stripe Color: Gold
• Deck Color (Gelcoat): Sport Yacht White
• Anti Skid Color (Gelcoat): Smoke
• Swim Platform Color & Anti Skid: Sport Yacht White with Teak Decking
• Cockpit Settee Fabric: Perennials Hello Sailor Style 845-90
• Sureshade Fabric: Oyster

MEZZANINE DECK / MAIN SALON / HELM DECK

• Overhead Cloud Fabric:Lighthouse Snow White
• Mezzannine Countertop Color: Viatera Minuet
• Mezzannine Deck Sole Material: Teak Decking
• Main Salon Settee Fabric: Perennials Raffia Style 210-24 Oyster
• Main Salon Chairs Fabric: Perennials Bedouin Stripe in Chambray 435-291
• Main Salon Cabin Sole Material:3.5'' Cherry Bead Board w/ Beveled Edge. Seam to be between the pillars aft of the helm area
• STIDD Seat Fabric: U/L Cornflower 363-2672 with U/L Ermind 383-5805 piping
• Helm Deck Settee Fabric: Seat Backs Perennials Bedouin Stripe in Chambray 435-291, Seats Ralph Lauren Rugged Outdoor in Navy LRY66682F
• Helm Deck Sole Material: 3.5 Cherry bead board with beveled edge
• Ocean Air Blind Color: Cirrus White V01-V004

GALLEY / HALL

• Galley Countertop Material: Viatera Minuet
• Galley Sole Material: Cherry and Holly Sole
• Art Nook Material: High Gloss Cherry
• Hallway Sole Material: Cherry and Holly Sole
• Hallway Covering Material: Phillip Jefferies Vinyl Silk Road Taupe 7593

MASTER STATEROOM & HEAD

• Master Settee Fabric: U/L Cornflower 363-2672
• Master Wall Covering Material: Phillip Jefferies Vinyl Silk Road Taupe 7593
• Master Sole Material: 3.5'' Cherry bead board with beveled edge. Seam in sole at master stateroom door
• Master Head Countertop Material: Porcelain White Viatera countertop with white porcelain undermount sink
• Master Head Sole Material: Anatolia Strada Ash Polished 69-945- Tiles to be stacked horizontally; Frost 77 grout
• Master Shower Wall Tile: Anatolia Strada Ash Polished 69-945- Tiles to be stacked horizontally; Frost 77 grout
• Master Shower Sole Tile: Anatolia Strada Ash Polished 69-951- Basket Weave mosaics; Frost 77 grout Master Shower Seat: Porcelain White Viatera

VIP STATEROOM & HEAD

• VIP Wall Coverings: Phillip Jefferies Vinyl Silk Road Taupe 7593
• VIP Cabin Sole Material: Cherry and Holly Sole
• VIP Head Countertop: Porcelain White Viatera counter top with white porcelain undermount sink
• VIP Head Sole Material:Cherry and Holly Sole
• VIP Shower Wall Tile: Anatolia Zebrino Polished 69-946-Tiles to be stacked horizontally; Frost 77 Grout
• VIP Shower Sole Tile: Anatolia Zebrino Polished 69-952- Basket Weave mosaics; Frost 77 Grout

FORWARD STATEROOM & DAY HEAD

• Forward Sole Material: Cherry and Holly Sole
• Day Head Countertop: Porcelain White Viatera Countertop with white Porcelain Undermount sink
• Day Head Sole Material: Cherry and Holly Sole
• Forward Shower Wall Tile: Anatolia Zebrino Polished 69-946- Tiles to be stacked horizontally; Frost 77 Grout
• Forward Shower Sole Tile: Anatolia Zebrino Polished 69-952- Basket Weave mosaics; Frost 77 Grout
• Forward Cabin Scissor Berth Fabric: S/B Blend Linen 160010014

EXTERIOR/DECK

• Contrasting Anti-Skid Color
• Teak decking in aft cockpit and steps
• Twin forward/bow shore power inlets with 50' cords
• Installed proportional bow thruster
• Plumb oil change intake and pump out lines in the transom
• Spare belt for the main salon aft entry door
• ACR searchlight model RCL-300A, 1 million candela
• 32'' television in the cockpit overhead to drop down
• Custom cockpit settee fabric
• Custom SureShade Fabric
• Handrails (port & stbd) on top of hardtop - approximately 8ft long, stud mount
• Extra grab handle on the cockpit/hardtop stanchion, facing the side boarding areas for easier grabbing. Retained the grab handles that is facing aft.
• Installed cockpit cushions with awning rail in lieu of Velcro

ALL INTERIOR

• All Interior doors and drawers to have bead detail
• Additional Network Module for Czone

BAR DECK/MAIN SALON/HELM DECK

• Bar deck sole to be Teak Decking. No finish on teak decking.
• Main salon sole, 3.5'' cherry bead board with beveled edge. Seam between the pillars aft of the helm area
• Helm deck cabin sole to be 3.5'' cherry bead board with beveled edge
• (2) Additional 8622 Volvo MFD & (1) Additional 8617 Garmin MFD display at the helm
• Custom Main Salon Settee Fabric - Perennials Raffia Style 210-24 Oyster
• Custom Style main salon seat back cushions to be original box style cushions
• Custom Main Salon Chairs Fabric - Perennials Bedouin Stripe in Chambray 435-291
• Custom Helm Deck Settee Fabric - Seat Backs Perennials Bedouin Stripe in Chambray 435-291, Seats Ralph Lauren Rugged Outdoor in Navy LRY66682F
• Electric Ocean Air blinds on the 3 forward windshields wired through the Czone system. Shades to function independently. Color Cirrus White V01-V004
• 10 speakers; 2 in cockpit in std location, 4 in main salon in each corner, 2 in galley std location, 2 in master over the night stands outboard
• Modified the standard outlet to include (2) 120VAC outlets with 2USB connections on the mezzanine deck, port side
• 120VAC outlet with 2 USB connection in the helm area, port side forward of the settee, up high
• 120VAC outlet with 2 USB connection in the helm area, port side aft, inboard of the settee, up high
• Additional 120VAC outlet in main salon, stbd side aft, behind the barrel chair, down low

MASTER STATEROOM & MASTER HEAD

• Master Stateroom Sole to be 3.5'' cherry bead board with beveled edge. Seam in sole at master stateroom door
• Replaced MSR head cherry staving with FRP head staving like DE37
• Master Stateroom TV Samsung 49'' Q6F 4K model. Deleted mirror cover, recessed the TV as much as possible, build a cherry frame around the exterior of TV.
• Separated black out curtains in the master stateroom, walk-in closet and master head
• Added 2 additional switch banks to the master stateroom, one on each side of the master berth. Each bank has a courtesy light switch and the other to control the 2 lights over the head of the berth.
• In the master walk in closet installed a 120VAC outlet and 2 USB connections in lieu of the standard outlet
• Installed a 120VAC outlet and USB connection on each side of the master stateroom settee in lieu of standard outlet
• Installed an additional 120VAC outlet in the master head outboard of the mirror

VIP STATEROOM & VIP HEAD

• VIP cabin sole and head sole to be Cherry and Holly
• Porcelian White Viatera countertop with white porcelain undermount sink in VIP head
• In the VIP Stateroom add 1 light switch bank to the forward side of the berth at the head. One switch for the courtesy light and the other to control the 2 overhead lights above the berth
• Installed a 120VAC outlet and USB connection on the fwd side of the VIP berth

FORWARD STATEROOM & DAY HEAD

• Forward stateroom cabin sole and Day head sole is Cherry and Holly
• Porcelian White Viatera countertop with white porcelain undermount sink in day head
• In the Guest Stateroom added 2 light switches to each side of the berth at the head. One switch for the courtesy light and the other to control the 2 overhead lights above the berth
• Install a 120VAC outlet and USB connection on the port side of the berth in lieu of standard outlet

MECHANICAL

• Volvo 1350 engine upgrade
• Seakeeper NG16 gyro stabilizer
• Installed a storage shelf above the Seakeeper. Shelf to have SS legs and an FRP pan to match other shelves in engine room

PUMP ROOM

• Central vac with (2) outlets and 32 foot hose
• Installed dual AC pumps with a manual switch valve between them
• Installed Spot Zero 2000GPD unit plumbed to a shore water inlet. All water tanks are plumbed to be filled through this shore water inlet and Spotzero so that all water is treated. Plumbed with a dedicated 1/2'' line from the transom garage to the pre-filters with a shut off valve at the filers. A female perko water fill mounted in the garage that accepts a dock hose. The output should fill the closets FW tank. Brine to discharger overboard.

AFTERMARKET OPTIONS

MISC OPTIONS

• Custom Side Boarding Doors for greater options for access in different docking situations
• Handhold on Hardtop
• Custom bang/quarter guard rail
• Non-skid on hard top
• Galley sink direct discharge overboard
• Cockpit seating covers

ELECTRONICS PACKAGE

• Customized Mast
• (1) Garmin GPSMAP 8617 MFD
• (1) Garmin Fantom 6 Radar
• (1) Airmar B60 20 degrees - Forward
• (1) Airmar DT800 Smart Transducer (to be networked to stand alone Garmin 8617)
• (1) Garmin AIS800 Blackbox
• (2) VHF Antennas - 6 ft
• (1) NMEA 2000 Network
• (2) NMEA 2000 Starter Kit
• (1) KVH TracVision HD7 - USAw/KA/Ku/Ka-band Tri-AD Technology; for DirecTV U.S. HDTV 01-0323-01SL-WH
• (1) KVH TracVision HD7 Empty Dome/Baseplate; Complete Assembly 01-0290-02SL-WH
• (4) HD Satellite Receiver with RF remote in Salon, MSR, Guest VIP
• (1) Icom M506 11 Class D DSC marine VHF radio
• (1) Bose 5-speaker surround, new OmniJewel speaker, wireless bass module, SoundTouch
• (1) Fusion MS-AV755 Bonded glass TFT Color display,DVD/CD (HDMI w/ARC for DVD), AM/FM/Sirius Ready/Pandora Control, IPOD/MTP (Android, Windows Phone) ready, Internal Bluetooth, 4 Zone, IPX5, 4X70W Class D, Fusion-Link Ethernet/Bluetooth and NMEA2000 Capable (Accepts MS-UNIDOCK) **Mounted in Salon**
• (1) Fusion MS-ARX70W Wirelss Stereo Remote
• (1) JL Audio M880-CCX-CG-WH M-Series 8.8-inch Marine Cockpit Coaxial System for Infinite-Baffle Use (125 W, 4 O) - White Classic Grille (PAIR) **Mounted in AFT**
• (1) GC 12 Marine Camera (mounted on mast)
• (2) GC200 Marine IP Camera 010-02164-00
• (1) Network Port Expander

HULL

• Premium LP Painted Topcoat Finish
• Modified “V” planing hull design
• 21-degree deadrise amidships and 16-degree deadrise at transom
• Reverse sloped transom
• ISO NPG clear gel coat w/ vinylester backup resin
• Knitted Biaxial Structural E-Glass reinforcements
• Infused SAN Corecell foam core in hull bottom and topsides
• PVC Foam cored composite stringer system
• Hull side rubbing strakes
• White PVC rub rail with stainless steel cap
• Painted (Urethane) Double Boot Strip
• Gold Cove Stripe

DECK

• 1 1/2″ diameter type 316 stainless steel perimeter rail system
• (4) stainless steel spring cleats
• (2) stainless steel mooring cleats
• (2) stainless steel stern cleats
• Salt water washdown system forward
• Custom stainless steel dual anchor roller
• 24V Electric Windlass with controls at helm and foot switches on deck
• Flagpole holder and flagstaff
• Stainless steel hatches w/screens
• Oversized Stainless steel opening ports
• Teak cap rails port and starboard
• Teak cabin side eye-brow
• Custom cast stainless steel “SABRE” medallion
• Triple Exalto windshield wiper systems
• Dual Kahlenberg air horns
• Cockpit retractable sun awning

PROPULSION

• (2) Volvo IPS 1350 drives w/D13 1000 hp engines
• Volvo Interceptor automatic trim system
• Volvo DPS positioning system
• Volvo Active Corrosion Protection system
• Volvo autopilot with joystick steering
• Volvo/Garmin Glass Cockpit Engine Display
• Fresh water-cooled engines
• Primary 24VDC alternators each engine for charging isolated engine start batteries. Auxiliary alternators 12V and 24V house and 12V system charging
• Groco raw water intake strainers
• Oil change system for engines, drive units, and both generators
• Engine room ventilation system 24VDC
• Engine room intake ducts on cabin house side with stainless steel grills
• White gelcoated engine room
• Fully sound insulated engine room

HELM DECK

• Electrically operated sunroof over helm & salon
• Twin Stidd helm seats with chrome finish
• Joystick steering on helm seat armrest
• Helm deck settee to port
• Door to starboard side deck
• Helm dash area finished in cherry
• Volvo/Garmin 8617MFD touch screen display for network operation
• Navigation switch panel
• Custom wood trimmed stainless steel wheel
• Air Conditioning/Heat 12,000 BTU

MAIN SALON/BAR DECK

• U-shaped lounge to port with custom fabrics.
• Hi-Lo table with inlays and deep epoxy finish
• Lounge chairs to starboard with 50” HD Smart television on electric lift
• Blinds on all windows
• Cherry sole with sealer finish
• Soft acoustic headliner panels
• Air Conditioning/heat 48,000 BTU total, 24,000 BTU each side

BAR DECK

• Stainless steel electric sliding double-acting door to cockpit with curved glass windows on corners
• Viatera countertop with bar sink
• Undercounter refrigerator
• Undercounter wine locker
• Undercounter ice maker

GALLEY

• Toe-kick space length of galley with courtesy lighting
• Sub-Zero full height refrigerator/freezer
• Wolf 4-element induction cooktop
• Wolf convection steam oven
• Wolf microwave oven
• Fisher & Paykel tall dish drawer
• Galley exhaust fan 120VAC
• Viatera cored counter top
• Dovetailed drawers
• Stainless steel under-mount sink with designer faucet
• Pull out waste basket
• Magic corner pull out storage
• Air Conditioning/Heat 10,000 BTU

FULL BEAM MASTER

• King size island berth with drawers and storage below
• Night stands with drawers both sides
• Settee
• Bureau(s)
• Walk-in closet
• Hanging lockers
• Large fixed stainless steel hull port lights
• 40” HD Smart TV hidden in mirror
• iPad Mini with Launch Port for wireless control of network systems
• Cherry sole with sealer
• Soft acoustic headliner panels
• Air conditioning/heat 24,000 BTU
• Stacked washer and dryer
• Storage under stairs
• Entertainment electronics locker

VIP Stateroom - To Port

• Queen island berth with drawer & storage below
• Night stands with drawers both sides
• Cedar lined hanging locker.
• Built in bureau in aft bulkhead
• Built in 32”HD television
• Stainless steel investment-cast port lights with screens
• Round hull side deadlights
• Screen/Shade for overhead hatch
• Private access to VIP head
• Cherry and holly sole with sealer
• Soft acoustic headliner panels
• Air Conditioning/Heat 10,000 BTU

Guest Stateroom - Forward

• Scissor berth converts from queen island to twin bunks with storage below
• Cherry hull ceilings
• Enclosed upper shelves to port and starboard of island berth Fwd most section open shelf
• Dimmable accent lighting below shelves and berth.
• Cedar lined hanging lockers
• Built in bureau aft
• Built in 24” HD television
• Screen/Shade for hatch
• Private access to guest head/shower compartment
• Cherry and holly sole with sealer
• Soft acoustic headliner panels
• Air Conditioning/Heat 12,000 BTU

FUEL SYSTEM

• 975 gal. diesel fuel total
• Port & Stbd 225 gal. “day” tanks
• 525 gal. centerline diesel storage tank
• Dual redundant fuel transfer pumps
• Racor dual 75/1000MAX fuel filters for propulsion engines
• Racor 500MA fuel filters for generators
• 2” “Diesel” stainless steel deck fill-plates to starboard. 1 per tank.

ELECTRICAL and NETWORK

NMEA2000 NETWORK SYSTEM

• Network monitoring of systems
• Network control of DC & AC electrical circuits
• Backup/override of all network circuit faults
• Mode controls, single push button activation of boat-wide circuits, customizable
• Onboard WiFi for network
• (2) iPad Minis with Launch Port for wireless control of network systems
• Parallel NMEA backbone for dealer /OEM installed electronics

120/240 VAC ELECTRICAL

• Twin 120/240VAC 50 amp AC shore power services with cord reels aft
• Isolation transformer with each standard shore power service
• Automatic AC switching system for shore & generator power
• Mastervolt 3.5kW high output inverter/charger
• Stand-alone 100A battery charger
• All accessible 120VAC outlets GFCI protected
• 120/240VAC distribution panels in engine room, adjacent to helm, and in galley.

24DC ELECTRICAL SYSTEM

• Ships battery bank (8) 6V AGM batteries
• Port & starboard isolated 24VDC engine starting battery banks, (4) Lifeline AGM 3100
• Dedicated 24VDC battery charger for engine battery banks
• Helm remote controlled battery switches with manual override
• LED Navigation lights
• High efficiency LED designer lighting throughout interior
• 24VDC distribution panels in engine room, pump room, and adjacent to helm

12VDC ELECTRICAL SYSTEM

• 12VDC battery bank (2) Lifeline AGM 24 supports generator start & 12VDC circuits
• Dedicated 12VDC battery charger
• Redundant 24VDC/12VDC converter
• 12VDC USB outlets at helm and in all cabins
• 12VDC distribution panel adjacent helm
• HDMI cables run from each TV to the area forward starboard of the master stateroom entry

FRESH WATER and WASTE SYSTEM

WASTE DISPOSAL

• Polyethylene holding tank 120-gallon capacity
• Holding tank vent filtration
• Full time cycling pump room exhaust fan
• Tecma Silence & Dometic Freshwater MSD’s with white ceramic bowls
• Diaphragm pump on holding tank to pump overboard
• Electrically motorized sea valve for holding tank pump out when at sea
• Day head ability to bypass holding tank and direct overboard discharge via locked Y-valve

FRESH WATER SYSTEM

• 24VDC Headhunter X-Caliber primary pump
• 240VAC Headhunter Mach 5 primary pump
• 26 gal. water heater
• Hot water circulation pump
• Filters on fresh water pump system and shore water inlet
• Fresh water spigot in engine room
• Fresh water spigot in anchor locker

DECOR

• Screens and shades on opening ports and hatches. With the exception of the galley behind the cooktop.
• Optional fabric and drapery selections
• Optional custom décor packages available
• Dovetailed maple drawer boxes throughout

SAFETY

• Fire extinguishers throughout
• Isolation transformers on shore power services
• Bronze and Marlon sea valves on all below waterline fittings.
• Bonding system to safeguard against galvanic corrosion
• Automatic fire extinguishing discharge system with override
• (4) Automatic electric bilge pumps 3700 GPH
• (4) Bilge high water alarms

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.

Listing MLS by Yachtr.com
