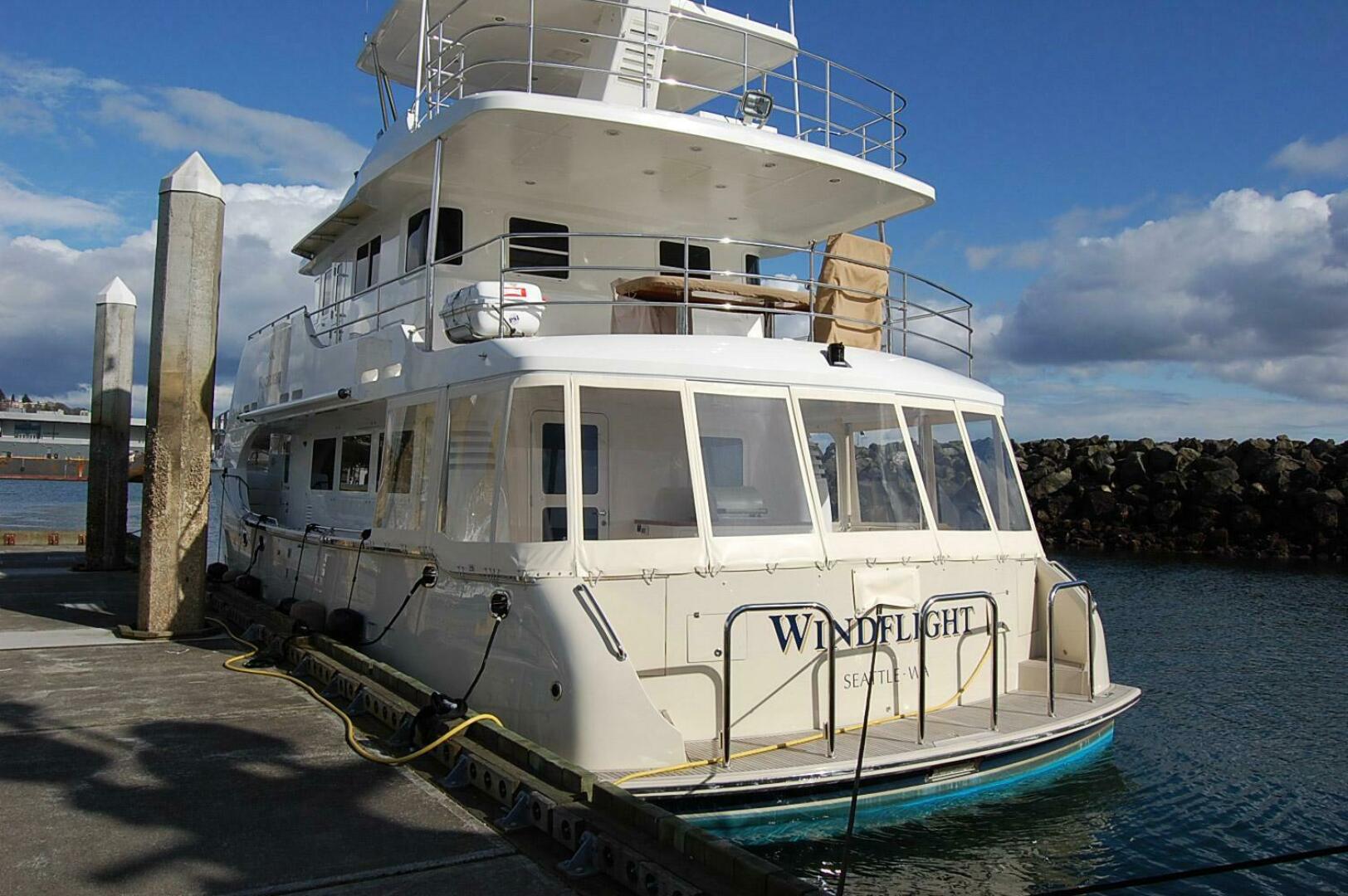

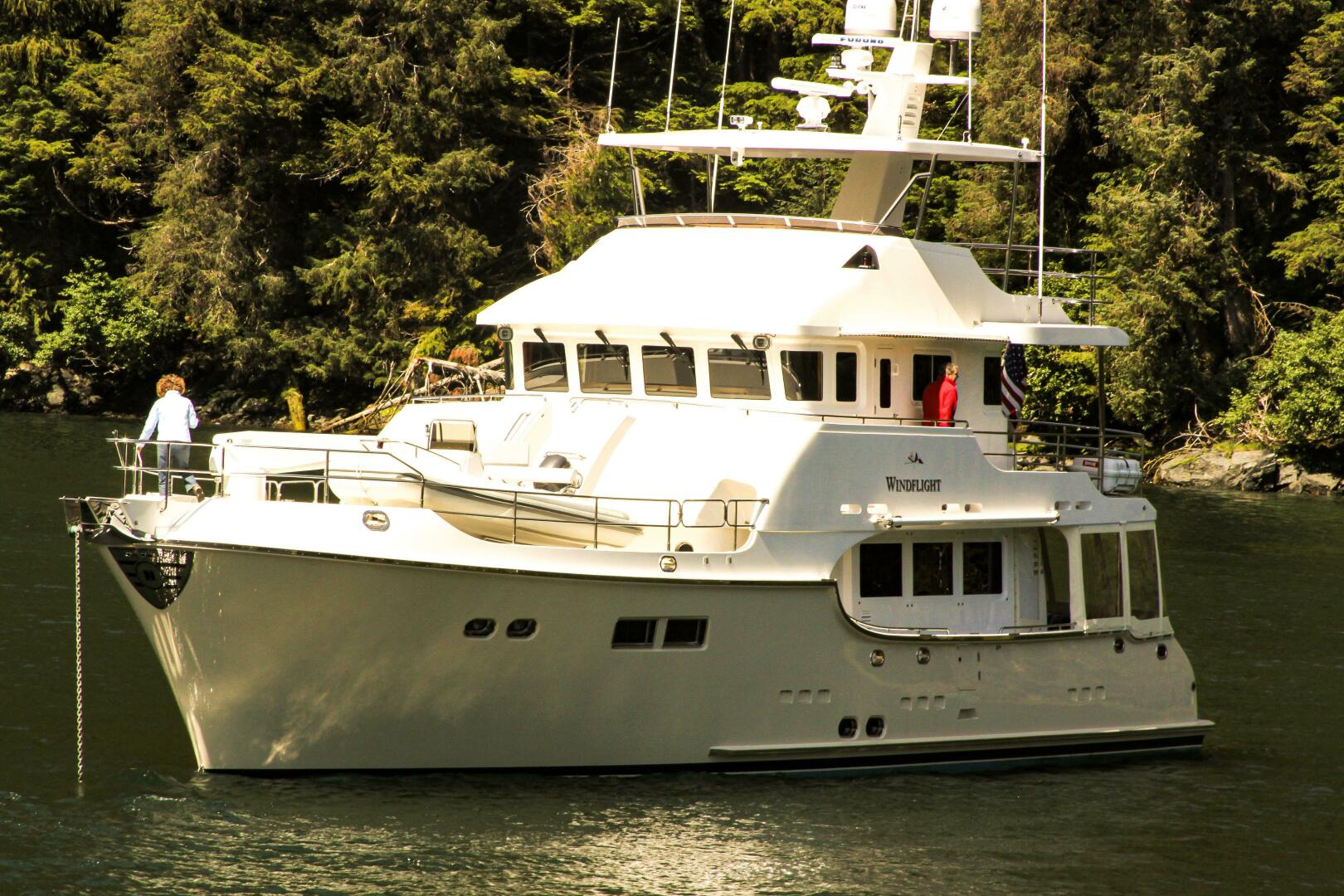

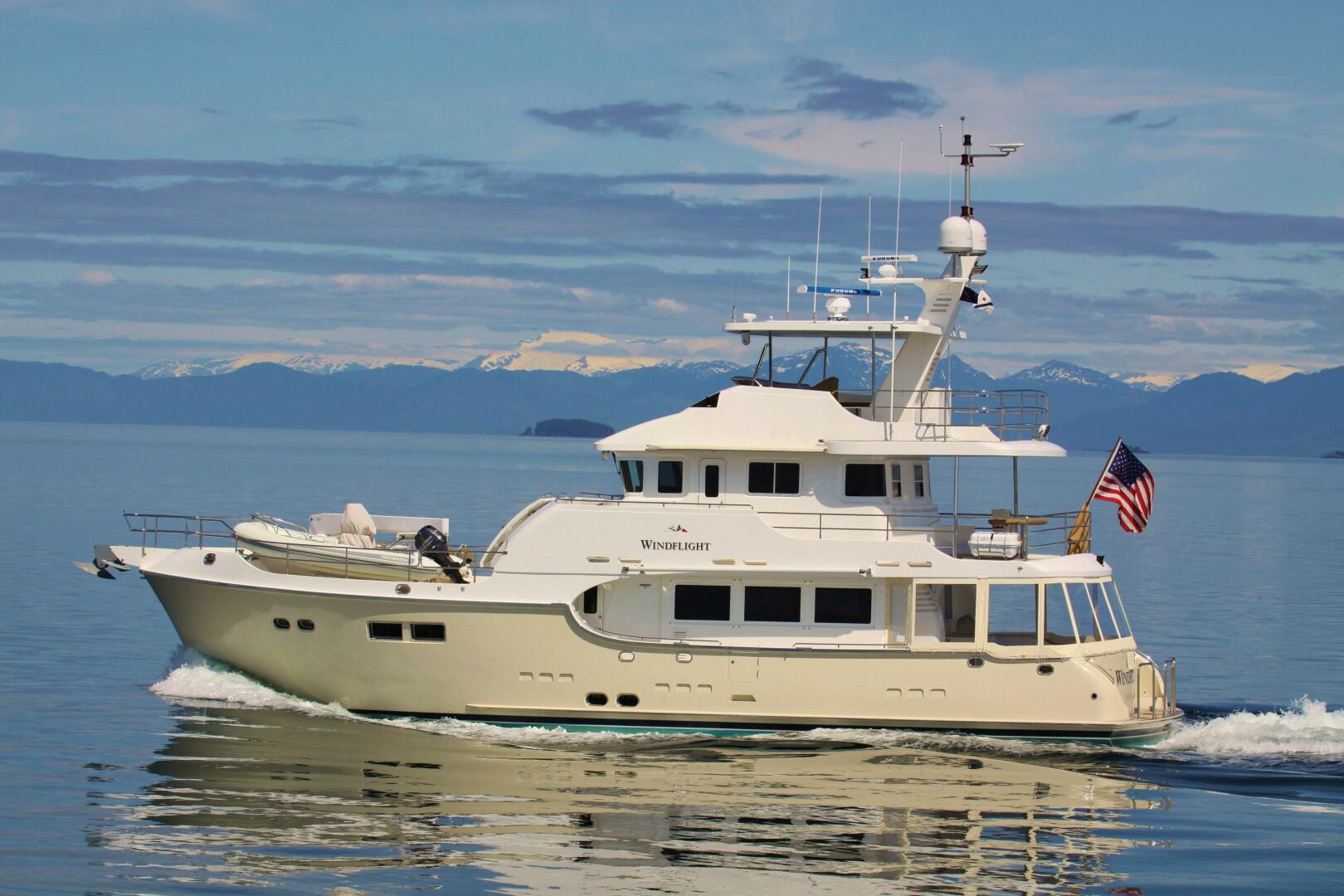

Windflight 68' Nordhavn 2011

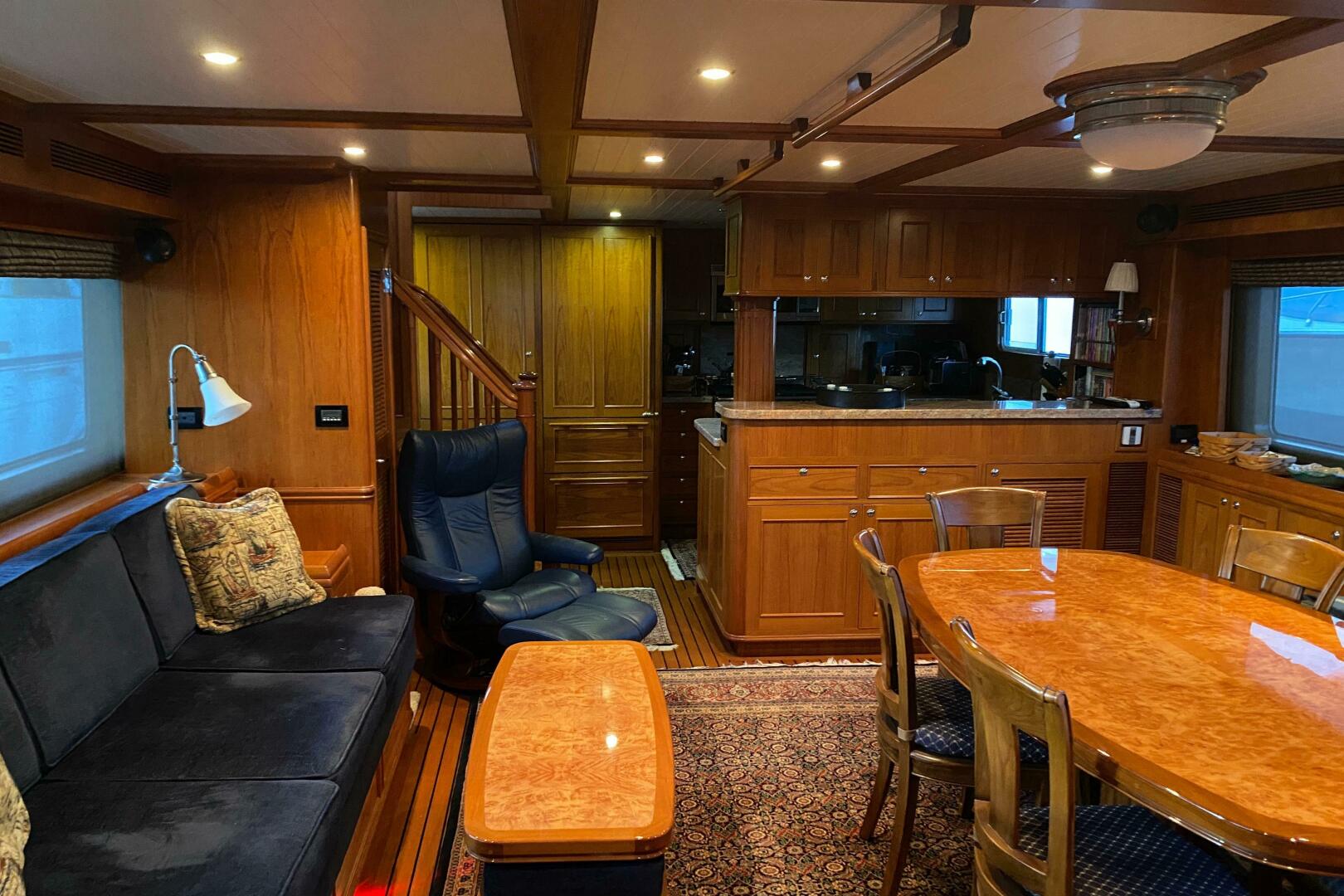

Entry to the salon is from the aft cockpit, featuring a water tight Custom Marine door that has both upper and lower glass panels that adds to the natural light In the salon. provided by the port and starboard side windows. This and all exterior cabin doors are also fitted with “Phantom roller screens” integrated into the door frame valences.

 The teak cabinet joinery including door and drawer faces of crown are built in Ta Shing fashion demonstrating their craftsmanship throughout. A custom dining table and coffee table of teak with maple burl inlay complement the interior joinerwork. The cabin soles are of teak and ebony, with oriental style area rugs placed on them, all of which creates an elegant dining and entertainment area.

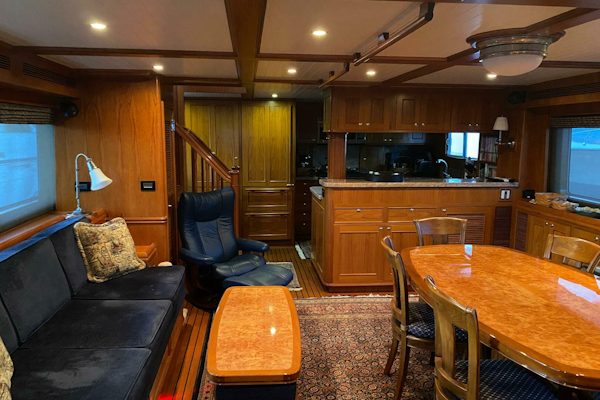

 On the port side a lounge settee is positioned for screen viewing and has a custom coffee table, with foot stool storage integrated into it on each end.  The coffee table has an inlaid maple burl top framed in teak.

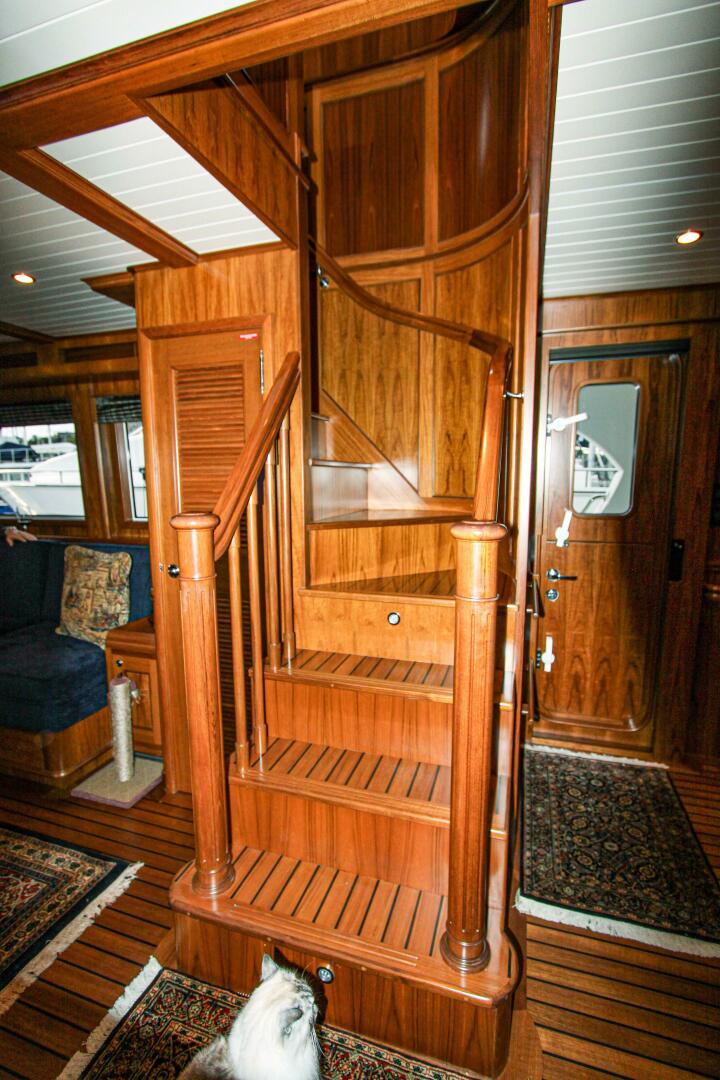

Forward on the port side a staircase ascends to the pilothouse.  The stair railings are supported by fluted posts of teak, and the wainscoting panels are of molded teak.

Back to starboard, the galley is laid out at the forward salon transition.  The galley is practically apportioned with plenty of working space for two.  The appliances are very high quality, and there is plenty of storage for extended time onboard with guests.

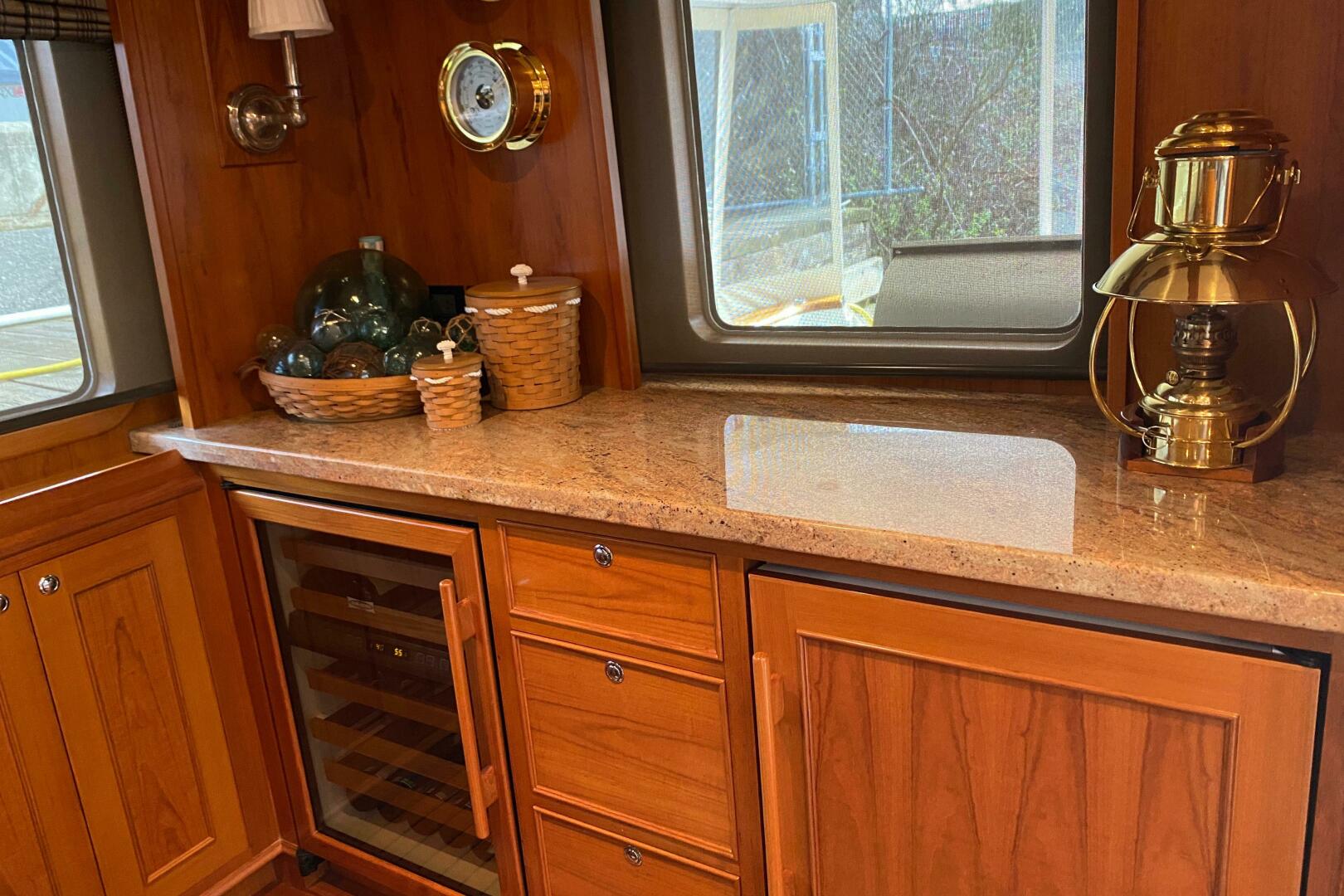

 Opposite the galley to port there is an alcove with a Dutch door out to the port side deck and a pantry, just aft of the alcove is a series of steps leading up to the pilothouse, and just forward is another series of steps leading down to the two guest cabins, utility room, and engine room.  A passageway forward of the galley to port leads down an easy four-step transition to a landing, then down to the lower deck, and also forward to the full beam master stateroom and ensuite head.

 Down one deck, there are two guest cabins one with head ensuite and the other is an office that is convertible into the second guest cabin just forward of the engine room on the port side.

Access to the pilothouse is from the port side of the salon/galley area up a stairway.  The pilothouse includes two Stidd helm chairs, command console and a raised U-shaped dinette aft of the helm chairs and day head.  Inside the pilothouse to port, steps up provide interior access to the flybridge.

Interior Comfort Detail:

As in the standard Nordhavn approach, there are extensive noise control and sound attenuation measures incorporated into the construction throughout, including noise damping in the hull in the area of the propeller, 3” lead/foam insulation in the engine room overhead, and 2” in its sides.  Insulation is covered with Soundown aluminum panels.  The salon and galley soles also have a 2” Nida-core system between top and bottom layers of ¾” plywood.  There are also insulated bulkheads in living areas and rubber gaskets fitted to laminated interior doorjambs.

The main engine dry exhaust system results in engine sound reduction on deck as well as in the interior living spaces.

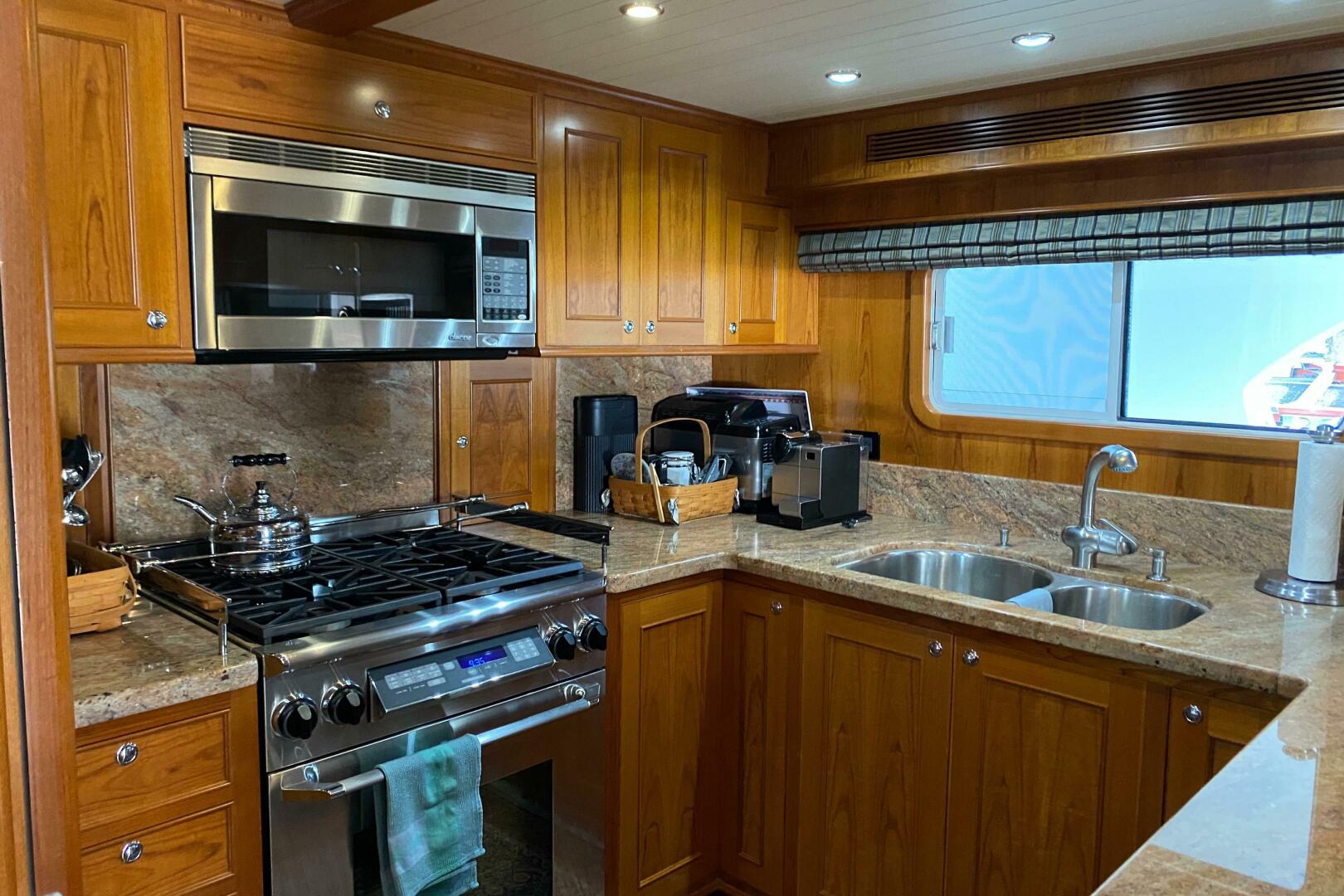

The galley has an open workable layout with plenty of workspace.  Its position relative to the salon provides a very social connection between the two areas, although the terraced counter conceals the work surfaces behind it when viewed from the salon.

The galley is well appointed with the following high-quality appliances and equipment:

• Custom granite counter tops with radiused edges
• Sub-Zero #700 TCI refrigerator with refrigerator drawers incorporated as well, teak panel faces, and custom positive latches for one-handed operation
• Dacor Epicure 30 dual fuel gas range and electric oven
• Stainless steel pot fiddles around stove top
• Dacor microwave convection oven with exhaust blower above range
• Miele trash compactor
• Full size Miele Premier dishwasher
• Elkay double stainless steel sink
• Insinkerator ¾ hp garbage disposal
• Pantry with pull-out shelves
• Sub Zero freezer drawers under steps leading up to pilothouse
• Grohe faucet with pull out sprayers

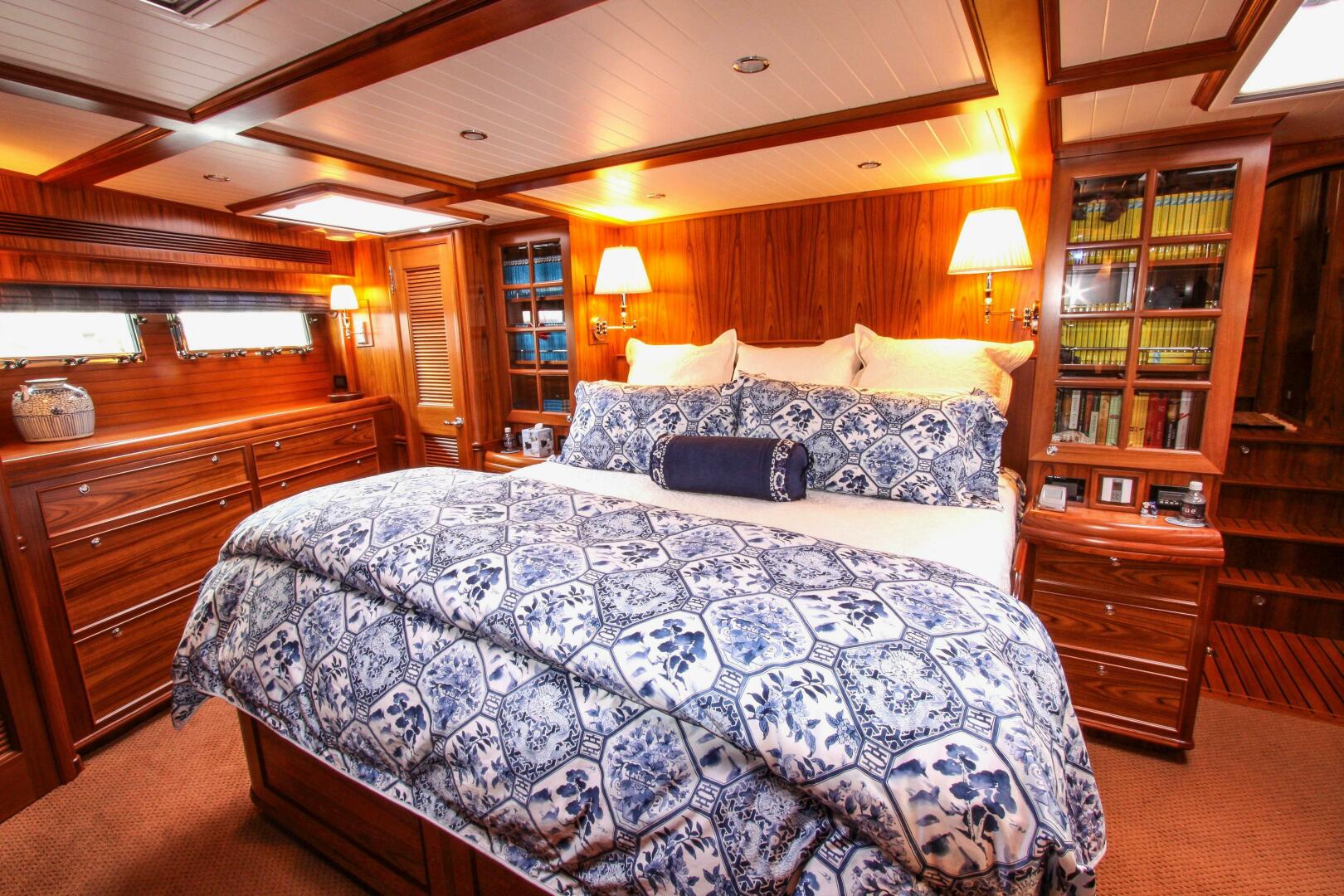

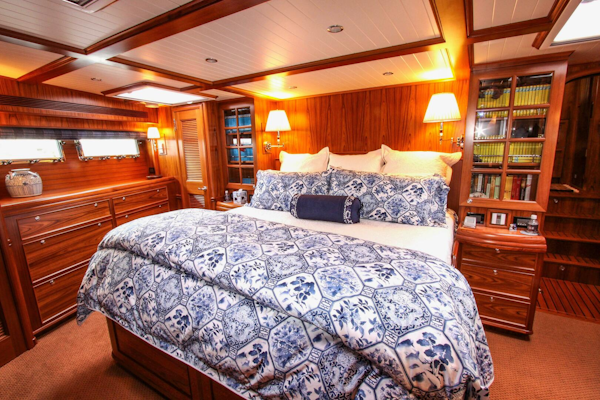

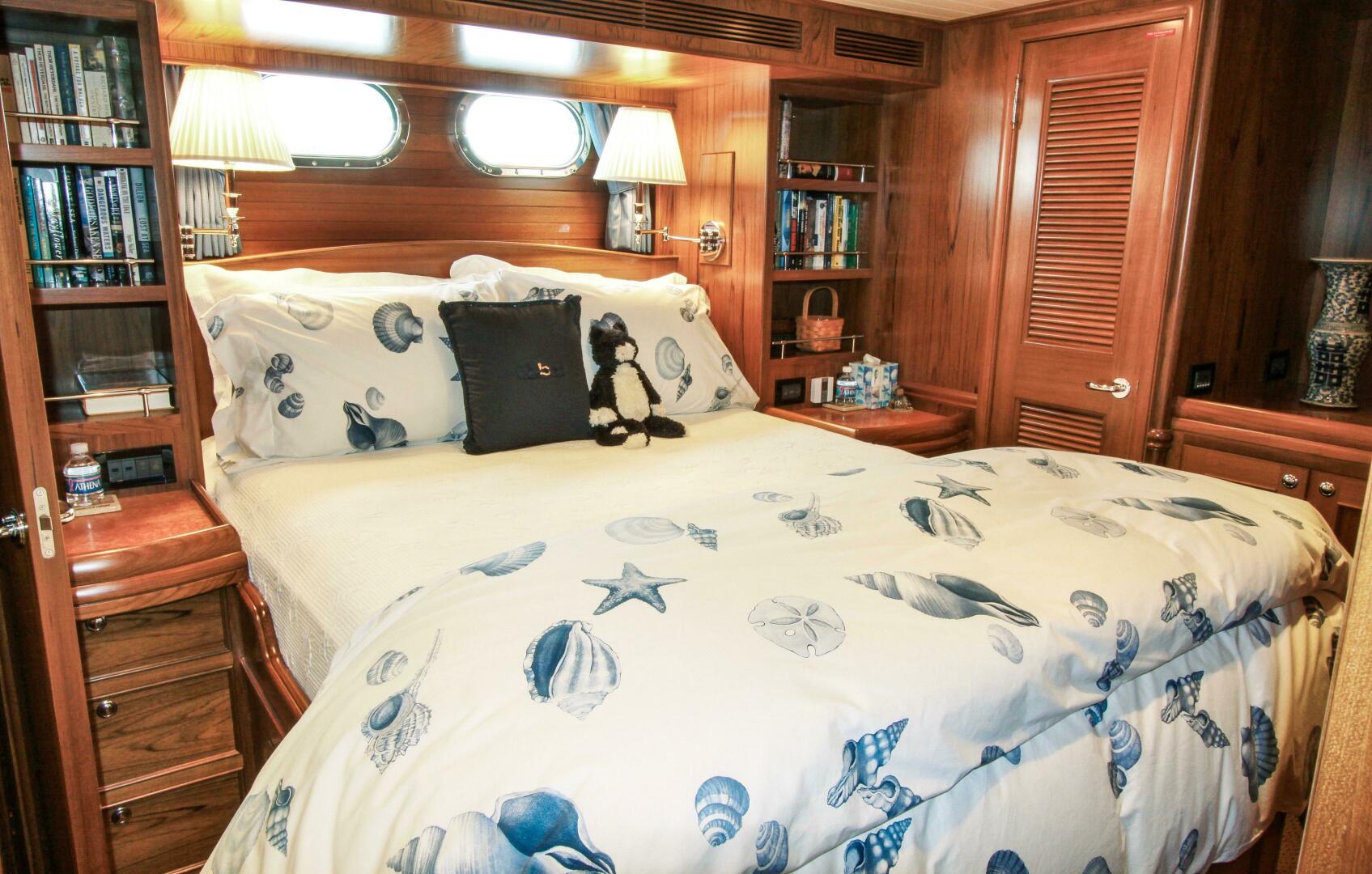

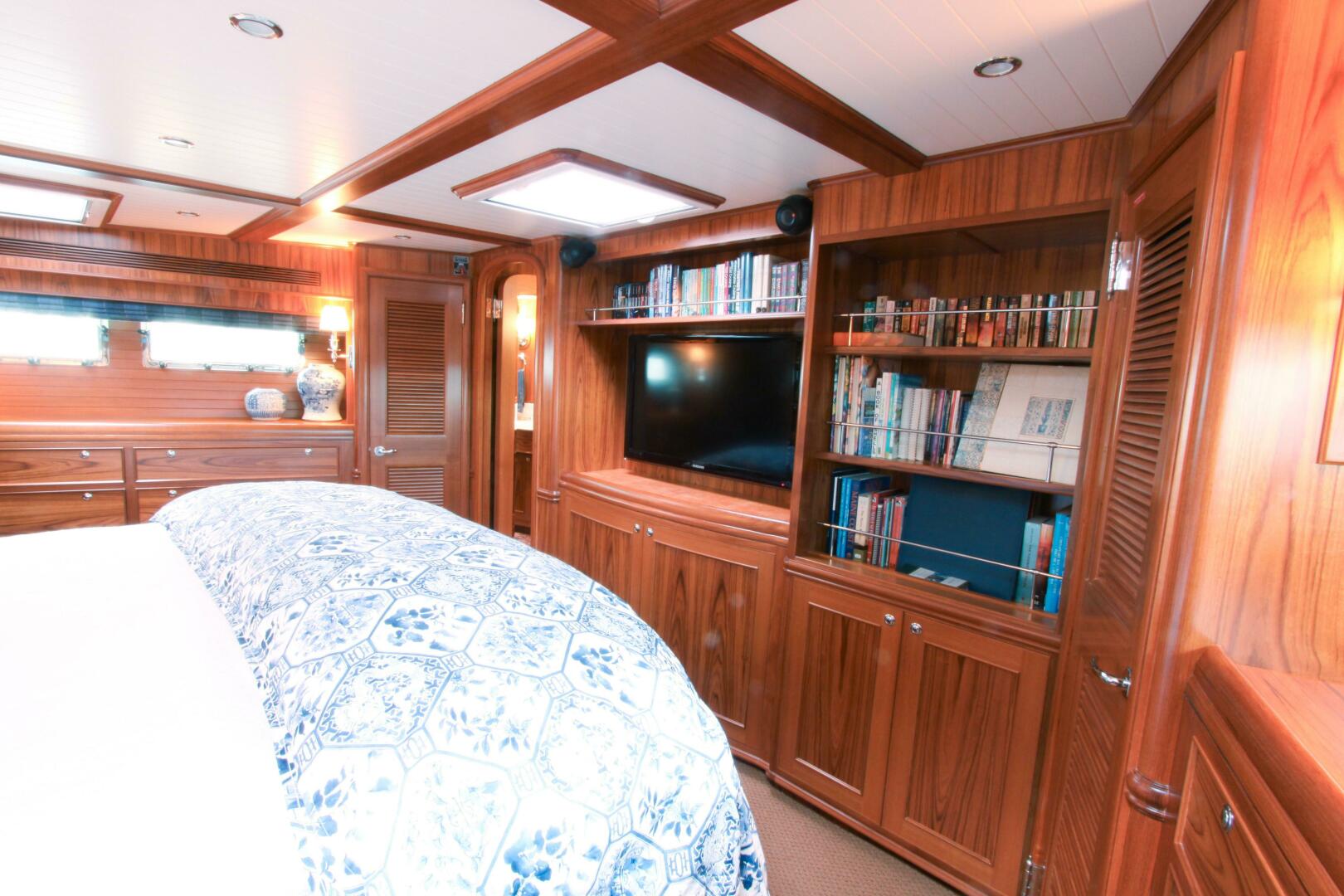

 It is an easy transition from the salon and galley area to the full-beam owner’s stateroom and head.  The king-size bed is on centerline and there is unimpeded access all around the bed, and to the storage areas.  The owner’s stateroom includes the following features:

• Custom mattress by Seattle Mattress Company
• Night stands on either side of bed with maple burl tops
• White beadboard overhead panels framed in varnished teak beams
• 32" Plasma screen TV mounted in an alcove forward in the stateroom
• Stereo sound system with Apollo speakers and sub-woofer
• Full length dressing mirror
• Edge-bound carpet on the sole

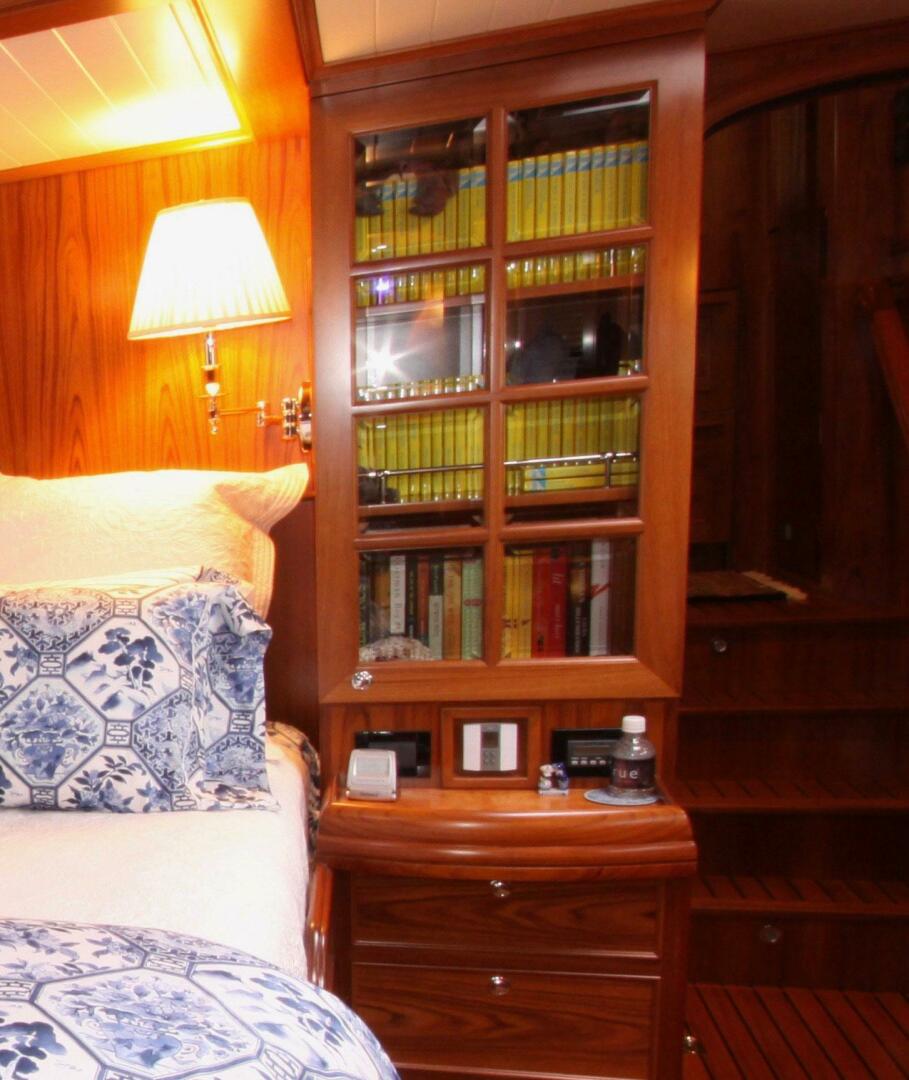

• Bookshelves on either side of bed enclosed in beveled glass divided light doors

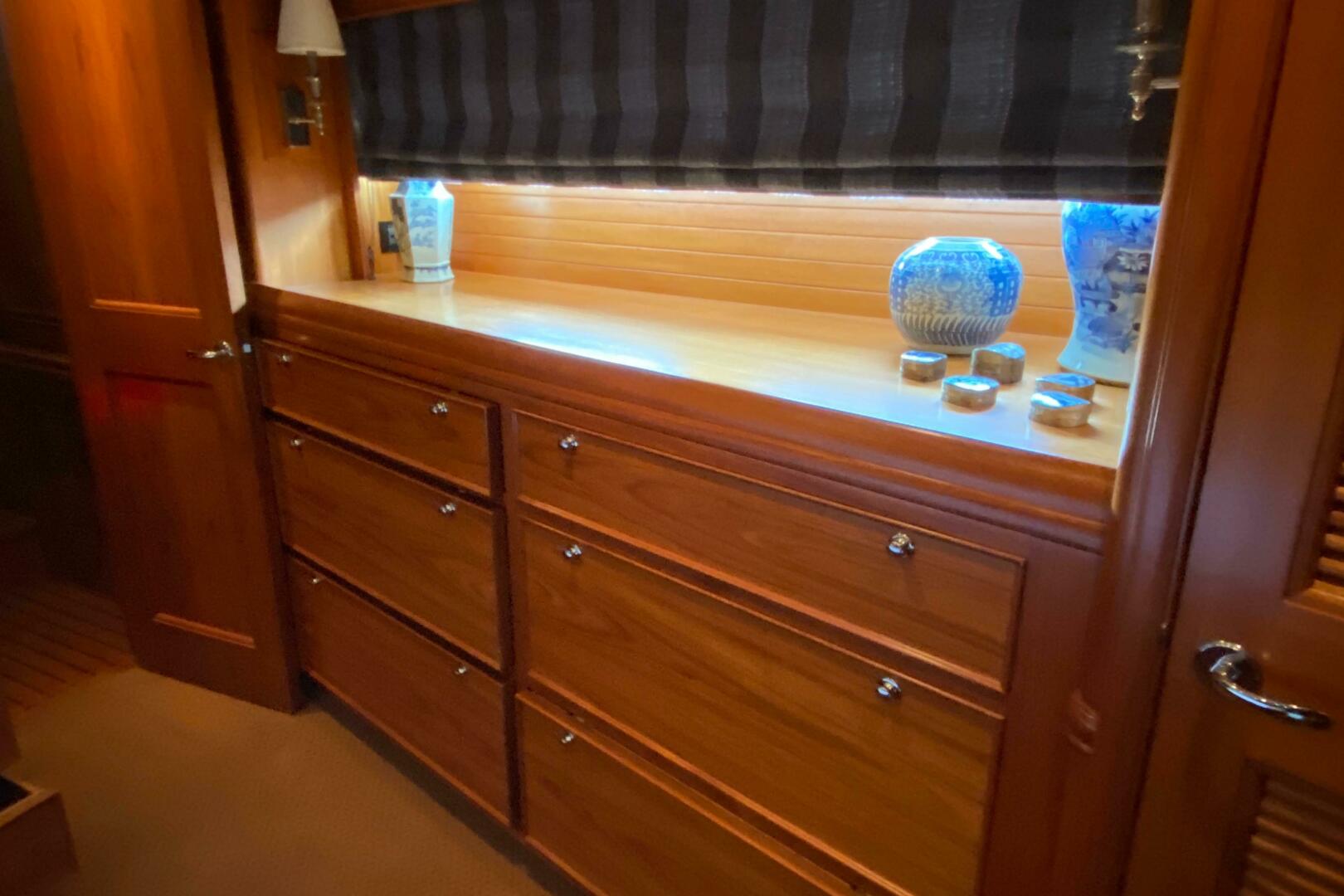

• Large storage volume in drawers and lockers
• Lots of natural light through three deck hatches and oversize stainless steel rectangular ports
• Fabric Roman shades over all portlights
• Furuno F150 data display next to bed

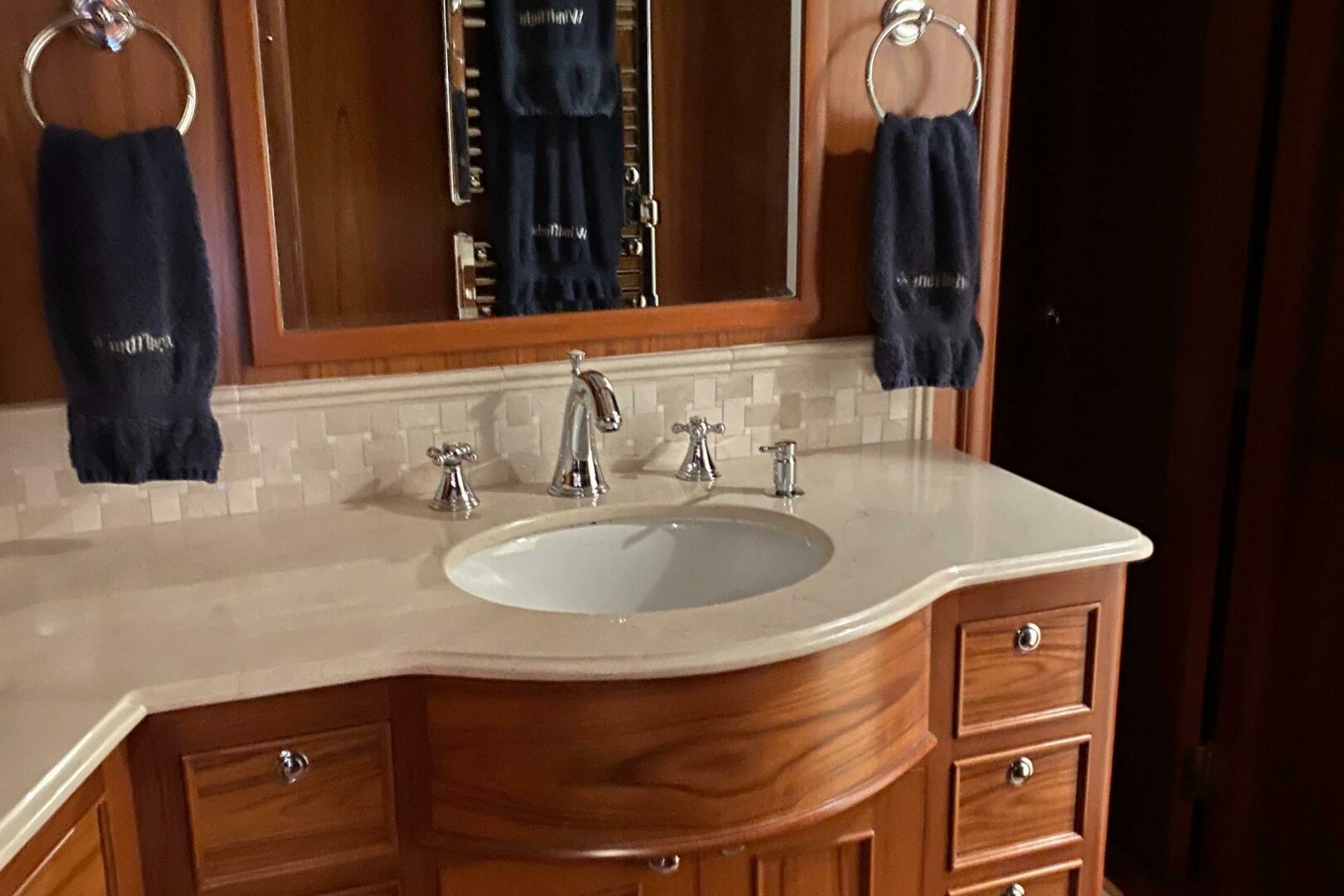

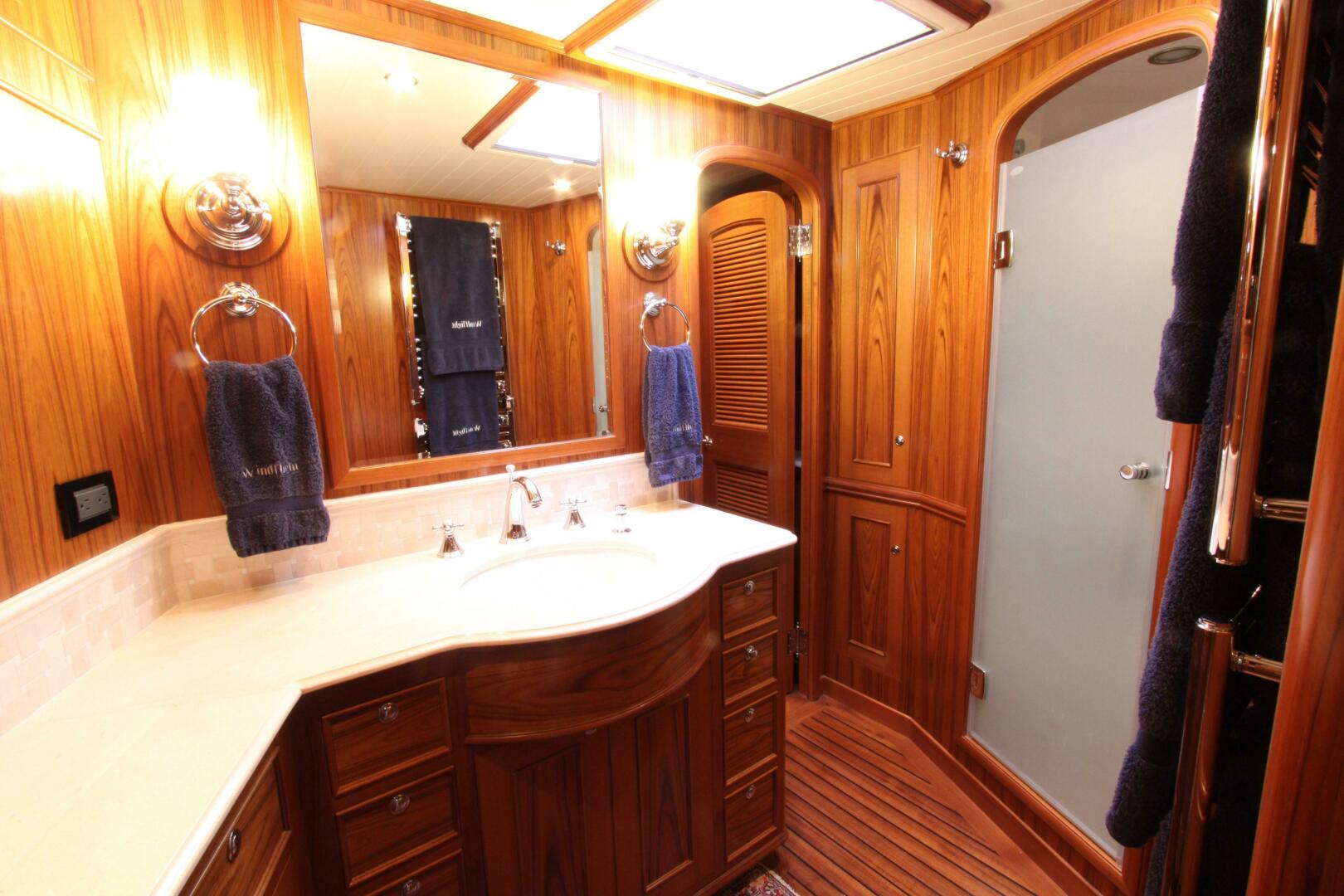

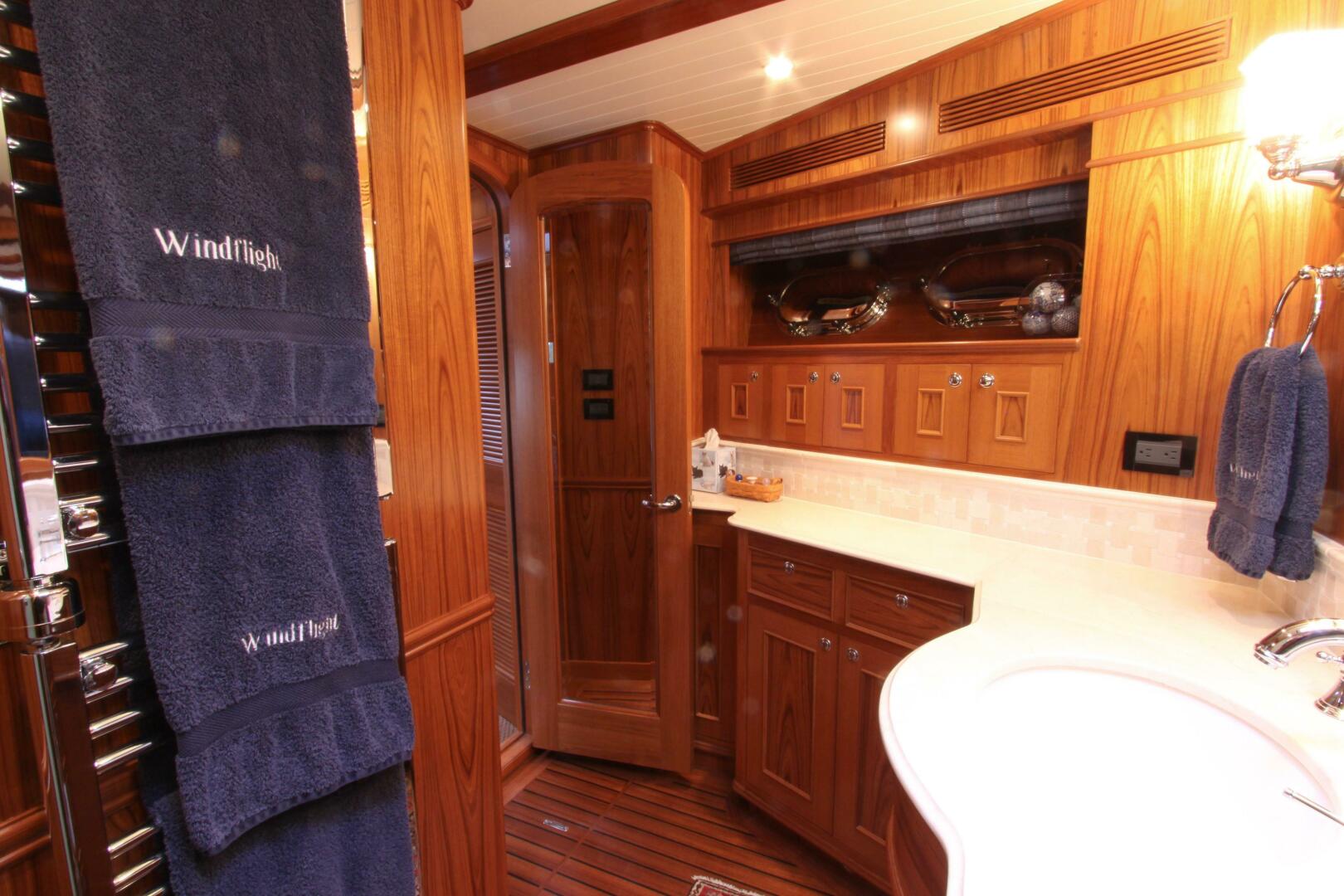

The owner’s head features:

• Large stall shower with 6' 8" headroom, tile floor, and marble top seat
• Kohler oval sink
• White marble countertop
• Air condition vents
• 2ea. exhaust blowers

Two guest staterooms are located on the lower deck down from the salon:

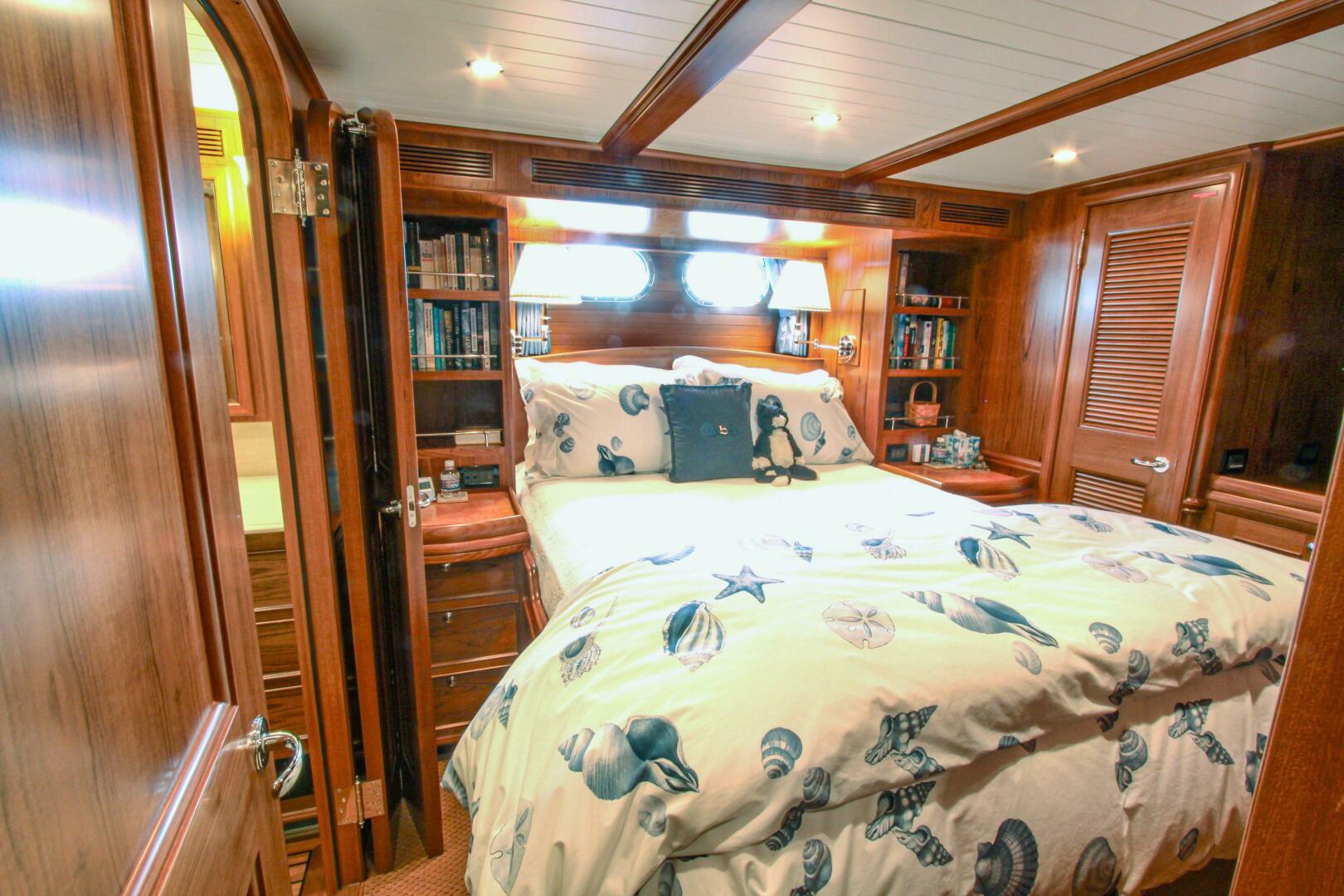

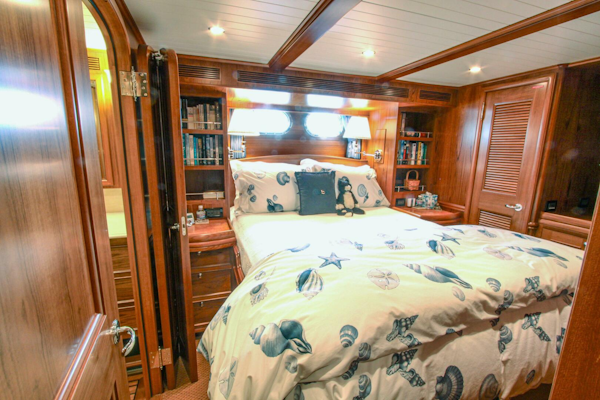

The primary Vip cabin sits to starboard and has a queen bed, storage and comfort including an ensuite head and shower. It contains its zone heat and air conditioning controls.

The second guest cabin is the convertible office that sits to port forward of the engine room. This port guest cabin/office includes the laundry (full size Miel washer and dryer and louvered door closets. The associated head is just forward In the hallway and includes a separate shower.

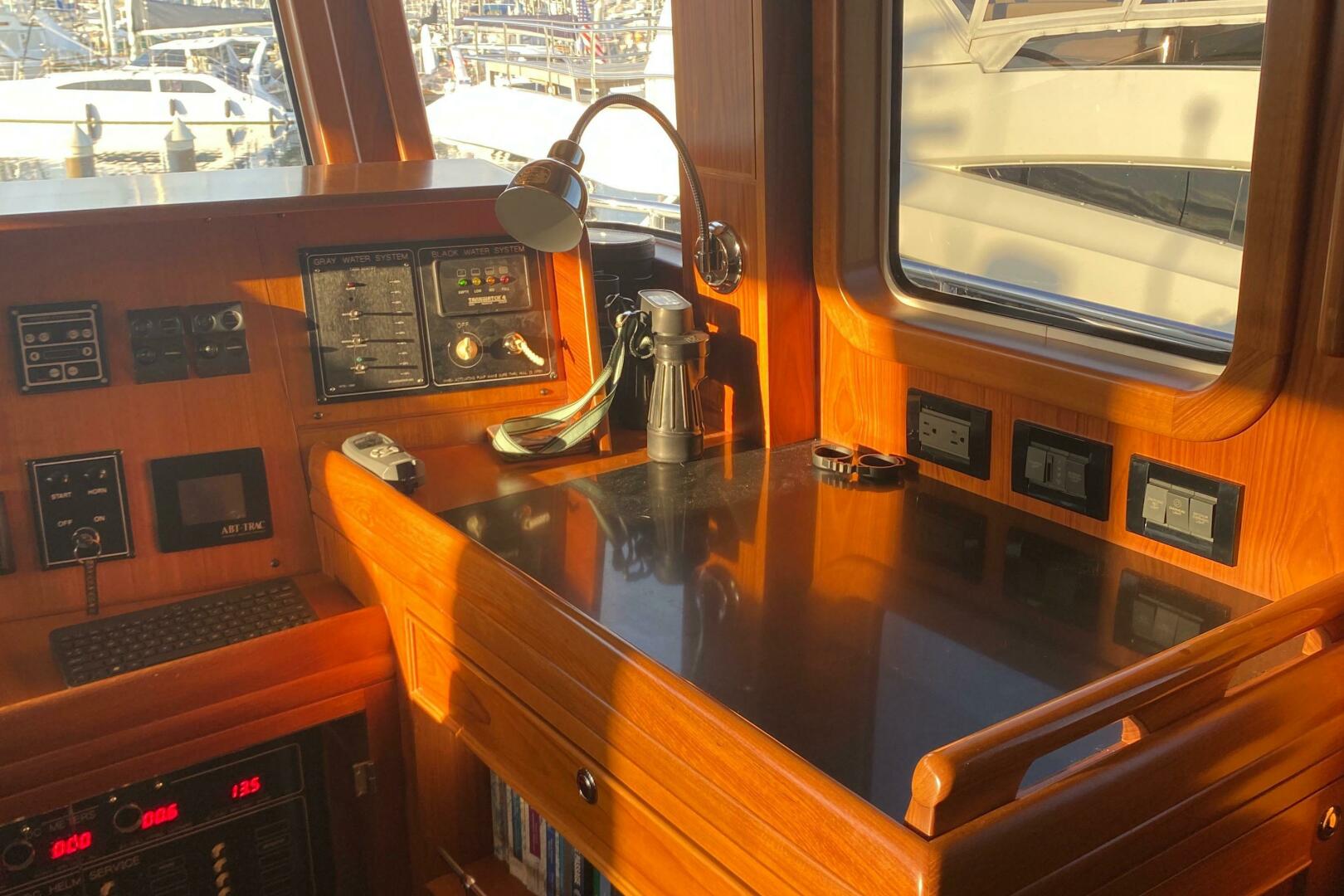

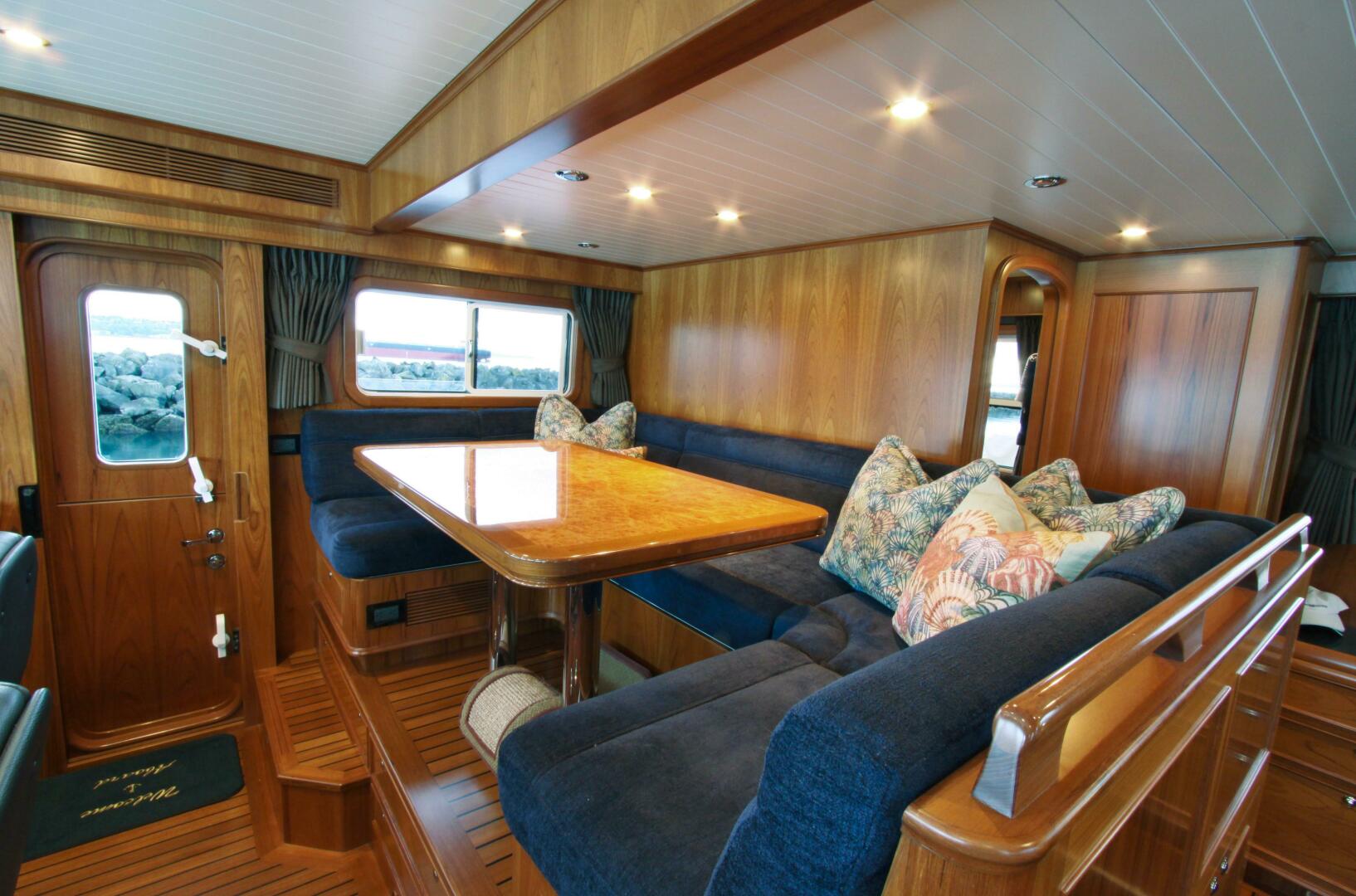

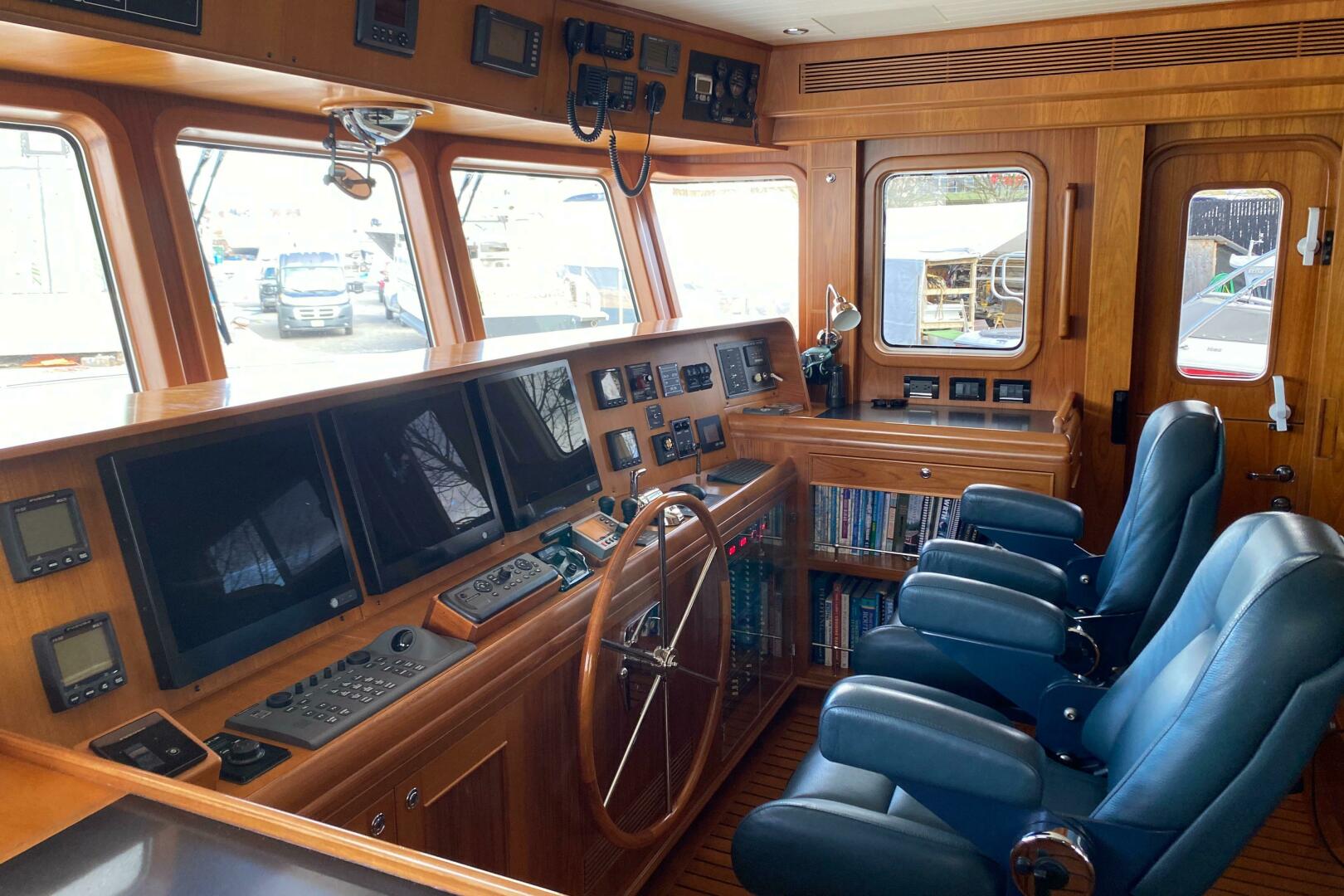

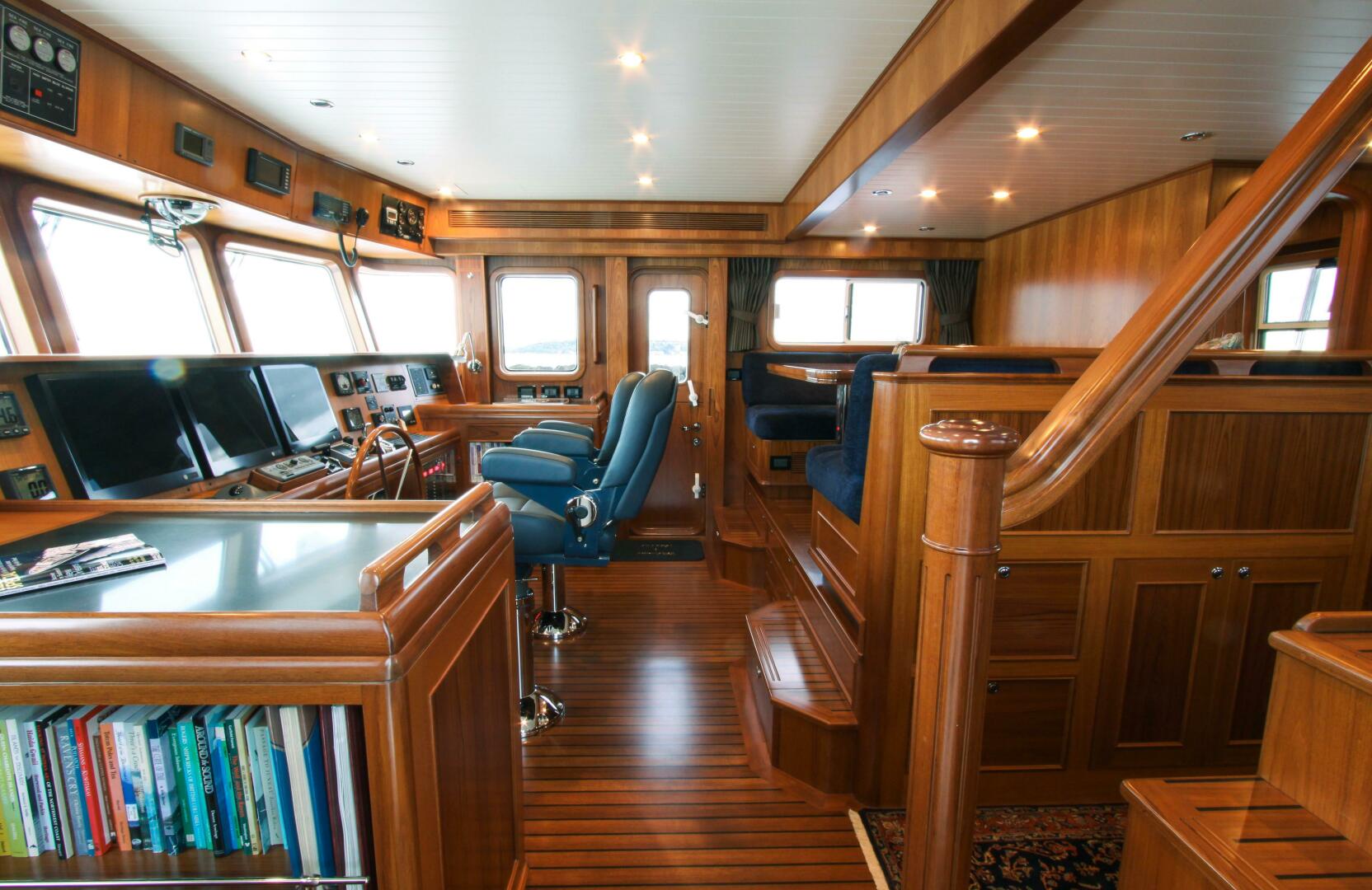

The pilothouse is intended to be an efficient and comfortable gathering place during extended operation.  Features:

• Easily viewable instrument console
• (2) Stidd adjustable helm chairs with chrome pedestals, stainless steel bases, and leather fabric

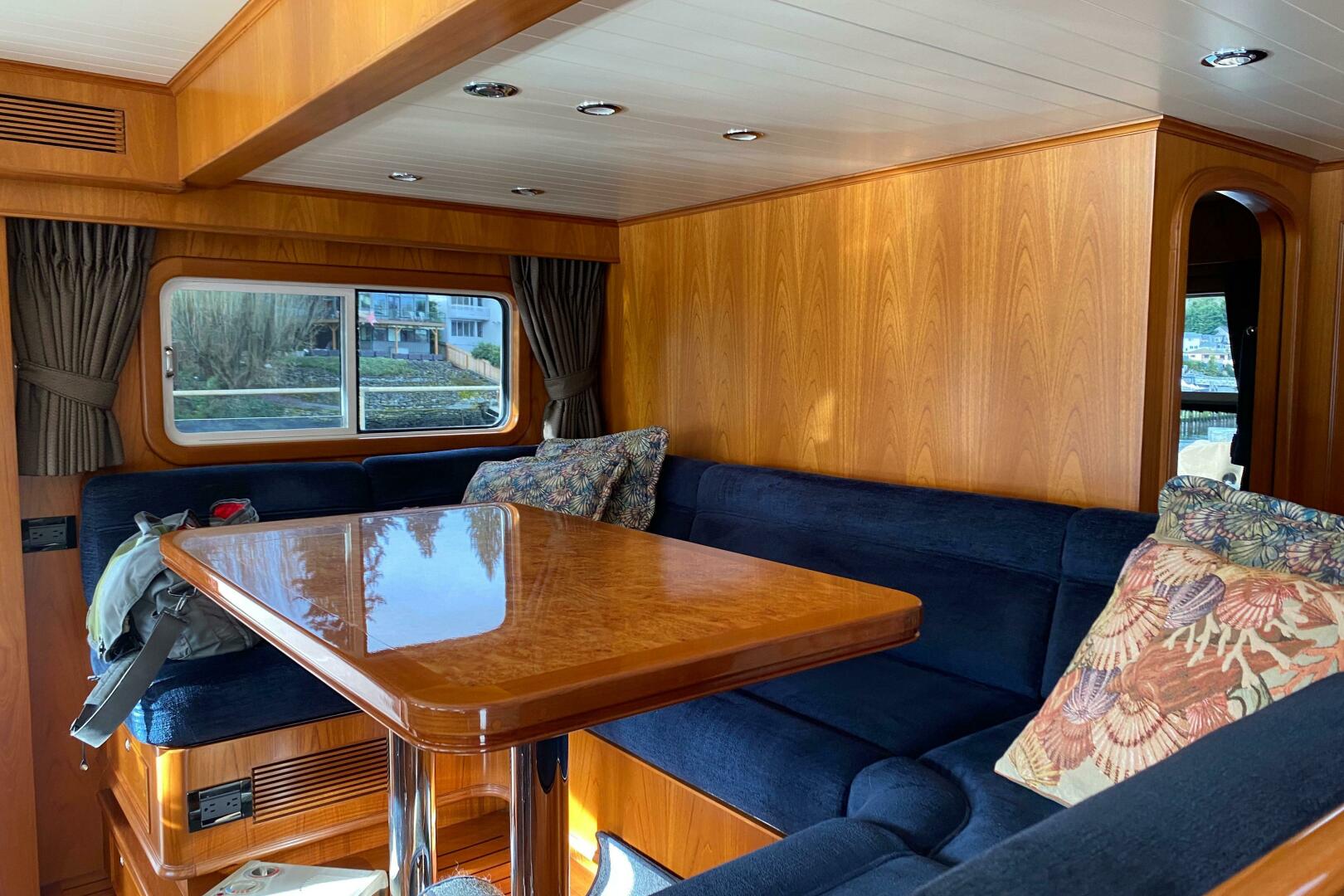

• Raised dinette seating aft of the helm chairs
• Dinette table has maple burl inlay top
• Work desk aft of the dinette settee
• Inside access to the flybridge
• Numerous bookshelves and drawers, including four large chart drawers

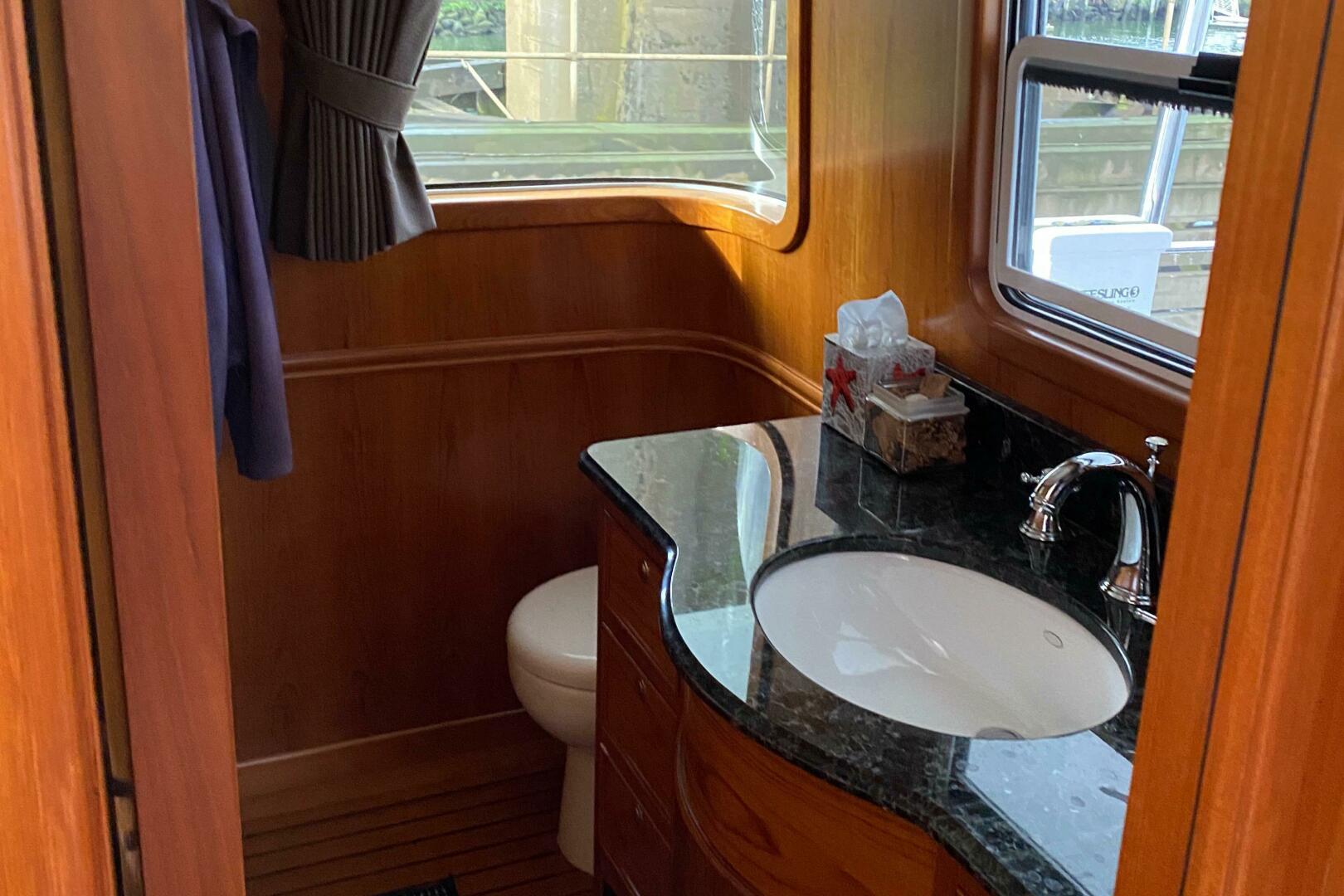

 Pilothouse head:

• Convenient for watch standing
• Large stone counter with Kohler sink
• Granite countertop, air-conditioning outlets, and deep storage cabinets extending under the dinette settee

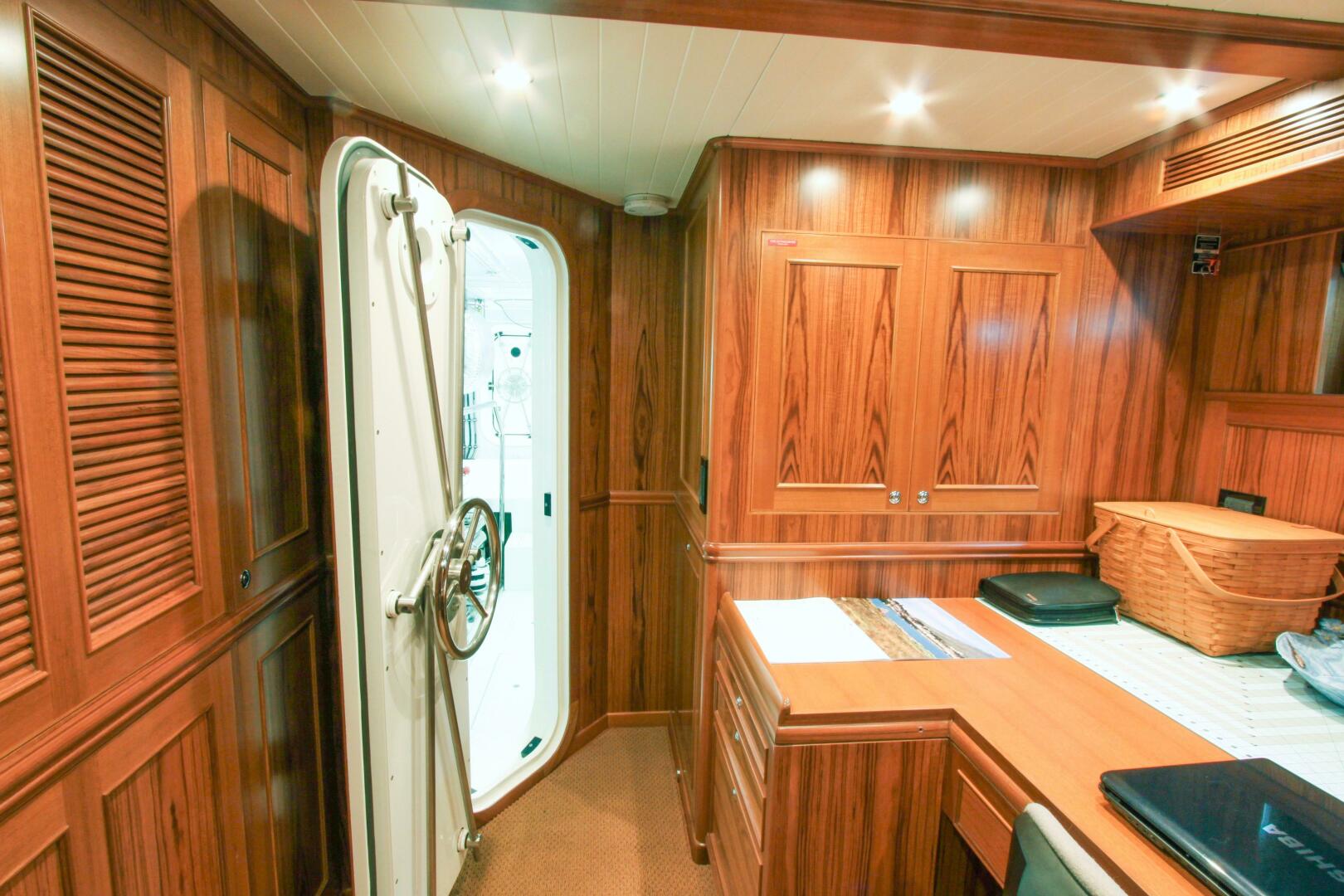

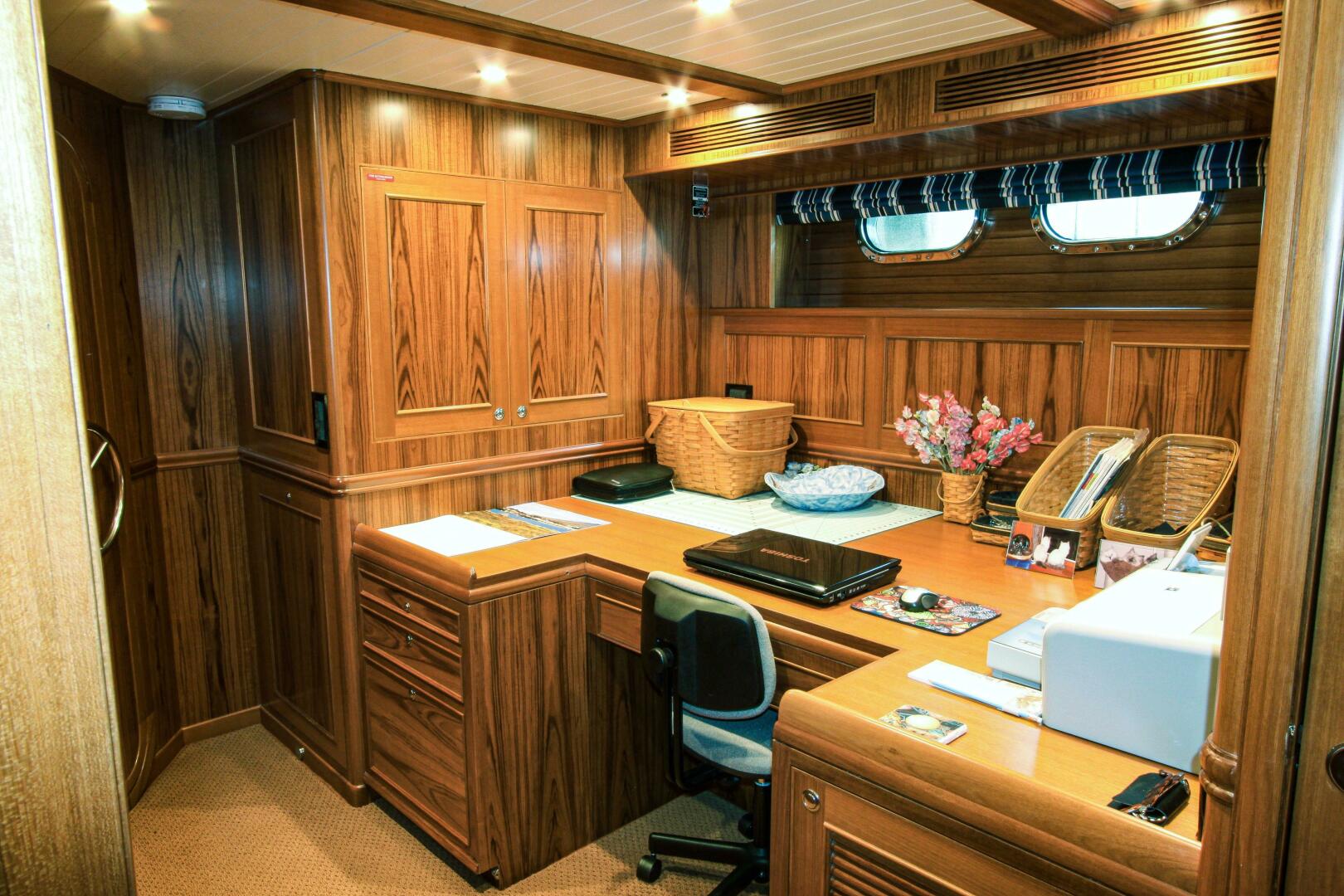

Pilothouse office:

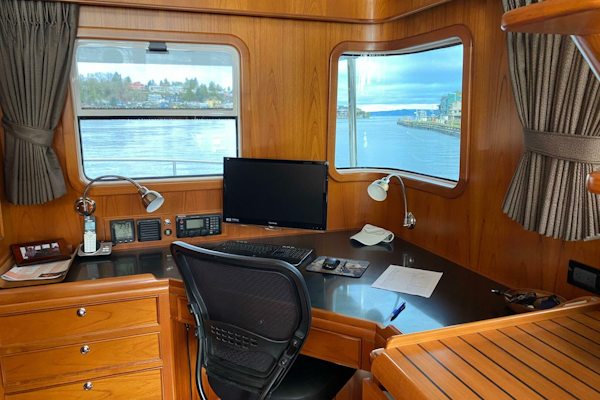

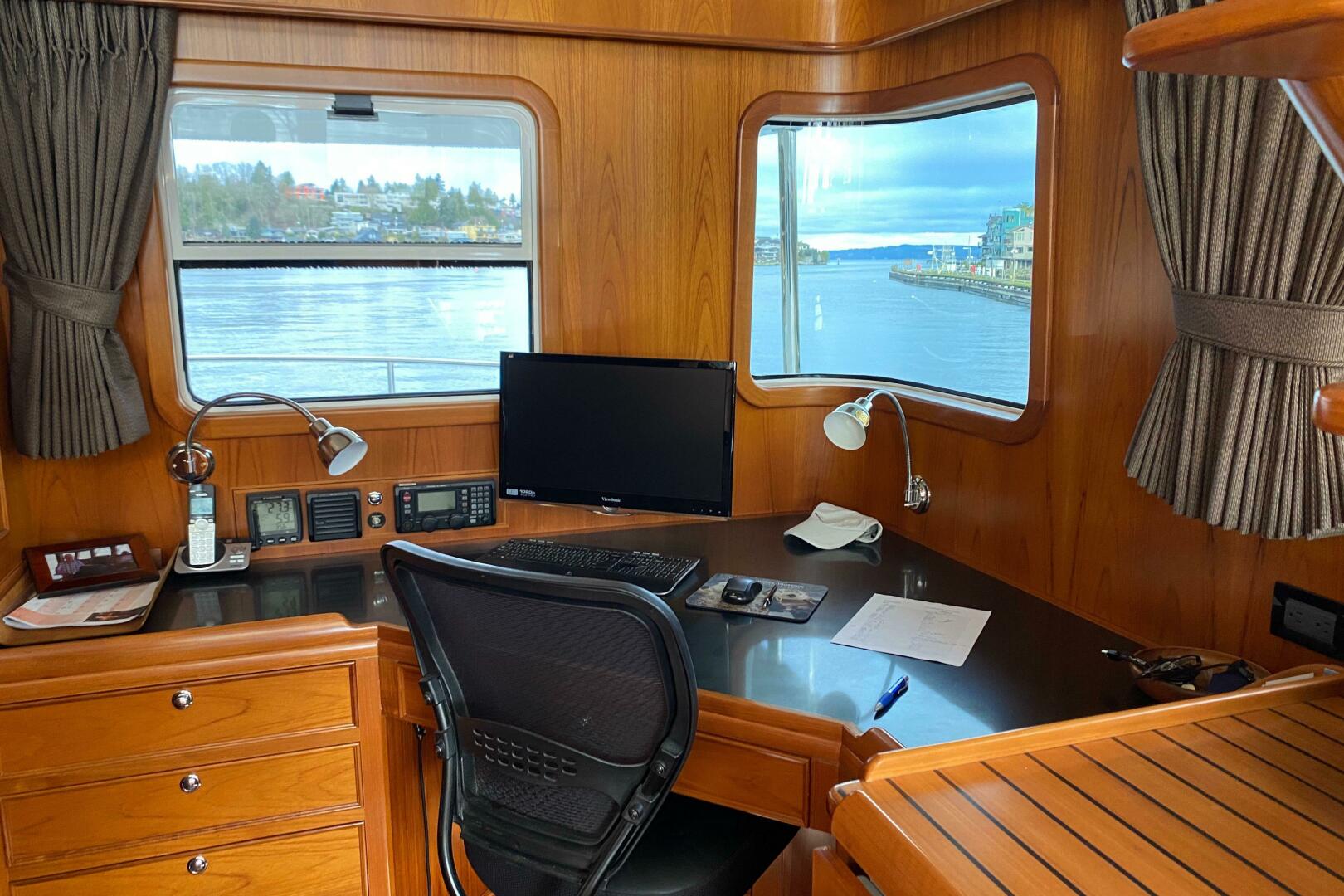

The pilothouse office is situated in the port aft corner, where it is surrounded by windows, and has the following features:

• Granite topped work desk
• Swivel chair
• PC connected to all com systems:  V7 Satellite dome, Starlink, VHF amplifier
• Two Sub-Zero freezer drawers beneath stairs up to flybridge.

Pilothouse:

• Furuno SC70 satellite compass
• Furuno FAR2117BB/DC radar
• Starlink Satellite system
• Furuno GP320B
• Furuno TZTBB (black box multi-function system processor)
• 3ea Hatteland 19” screens
• Furuno multifunction keypad
• 2ea Comnav autopilots
• 3ea. Comnav follow-up steering levers – one on flybridge, one ea. on port and starboard wing stations
• Comnav P2 color display
• 2ea. HPU 212 autopilot pumps
• ICOM M604 VHF radio
• ICOM M424 VHF radio
• Furuno FA150 AIS
• Furuno RD33 remote display
• Furuno FI501 digital multi-display
• 3ea. Furuno FI504 digital multi-display
• FLIR infrared and thermographic camera control
• 2ea. Furuno FI503 digital multi-display
• ICOM 802 Single-Sideband Radio
• Navigation PC – separate from office PC although both PC’s are connected to all communication systems
• KVH V7 for Satellite communications
• KVH Trac system for TV reception

 Flybridge:

• Furuno MFD12 mulifunction display
• Furuno RD33 N2K multifunction display

 Pilothouse office area

• PC with separate monitor and keyboard
• Furuno 150 multi display
• VHF amplifier

 Master Stateroom

• Furuno 150 N2K multifunction display

Entertainment:

 Main Salon

• TV on a lift to starboard
• TV feeds from TRAC satellite system
• 5.1 Surround Sound system powered with an NAD amplifier, and including CD, DVD, DVD Bluray, and AM/FM tuner

 Master Stateroom

• TV
• Stereo sound system with Apollo speakers and sub-woofer

Flybridge

There are stairs inside the pilothouse up to the flybridge. The flybridge has the following features:

• Hardtop
• Stidd helm chair
• Main engine controls
• Furuno MFD12 multifunction display
• Furuno RD33 N2K multifunction display
• Autopilot control head
• Chest freezer in custom enclosure

DECK & FLYBRIDGE EQUIPMENT:

• Teak decks on cockpit, side decks, and flybridge
• Aft upper deck hardtop
• Flybridge hardtop
• Covered seating area with table aft and outside of pilothouse
• Fire Magic BBQ mounted on cockpit console
• Custom deck box outboard of davit boom on foredeck
• Dual bow anchor rollers
• Maxwell VWC 4500 hydraulic windlass with hand brake and chain counter
• Maxwell VWC 4000 electric (back-up) windlass
• Dual 400’ x ½” HT anchor rodes
• Dual Freeman anchor locker access hatches
• Dual anchor wash nozzles with hydraulic pump for each
• (2) ½” x 400’ HT chain anchor rodes
• 300 lb. genuine CQR anchor
• 140 lb. genuine CQR anchor
• Steelhead CT2500 lb. capacity 240-volt/hydraulic davit with 21-foot extension range, mounted on foredeck.  Dinghy can be launched port or starboard
• Both wired and remote controls for the davit
• Foredeck and aft deck floodlights
• Deck Gasoline Storage Tank and Pump for Fueling Tender

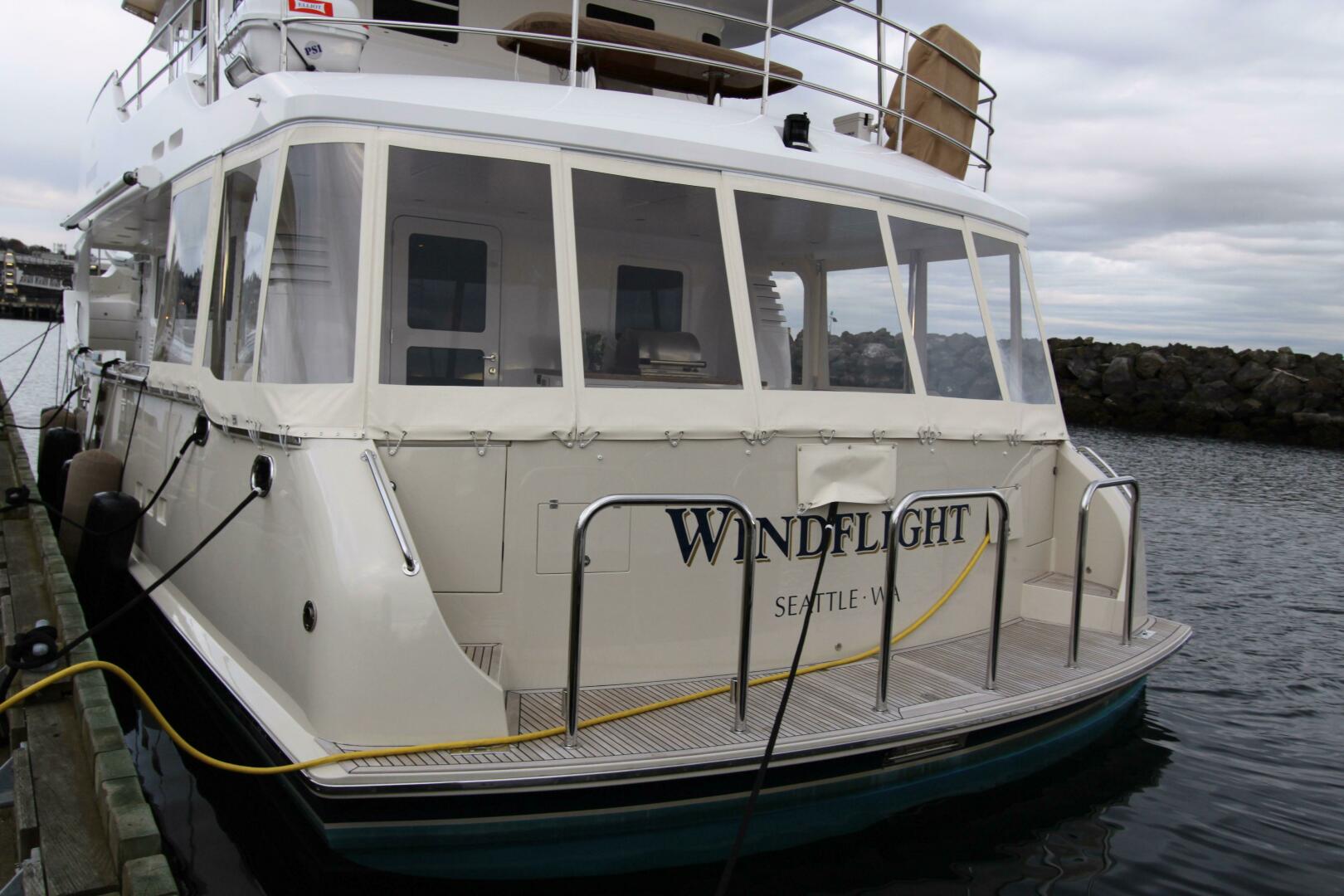

COCKPIT:

• Teak planked
• Beautiful cockpit enclosure with Strata-glass panels for optical clarity, creating the perfect “solarium” effect in cooler climates
• Settee and dining tables with canvas table covers
• Fire Magic LPG Barbeque in cockpit console
• Storage console
• Maxwell VC220 vertical capstan/warping winch

The engine room and mechanical spaces are typically Nordhavn – efficient engine and systems layouts with easy inspection and service access including walk-around access to the main engine, and walk-up access to the wing engine and generators.  There are engine and systems monitoring modules, a DDEC engine control, and a workbench with sink, vise, and a built-in five-drawer tool chest.

The engine room connects with the cockpit lazarette through a gasketed aluminum door for all-conditions access to steering gear, mechanical and electrical systems, battery banks, and gear that may be stowed in the large volume of space there.

The engine room ventilation systems include: (2) 230vac intake blowers, exhaust blower, Delta fire/smoke dampers, and auto shutdown for blowers and closure for dampers by Seafire actuation.  The lazarette is well illuminated by AC fluorescent and DC overhead lighting.

The engine room is also fitted with its own air-conditioning unit, making the environment comfortable while carrying out service and maintenance work

Other engine room features:

• 5-drawer stainless steel tool box
• Stainless steel topped work bench
• Pacific Custom Marine dogged doors forward entry and aft lazarette for sound attenuation

Lazarette aft of Engine room:

• High Current DC bus and battery isolation switches
• 2ea. Outback Inverters
• 2ea. Victron Centaur multi-voltage, 50/60 hz battery chargers
• 12kva isoboost transformer
• New and used oil tanks
• Village Marine 85 gal/hr. watermaker with freshwater flush, UV sterilizer large media (sand) filters and remote panels. Media filters reduce pre-filter changes dramatically, especially in Pacific Northwest and Alaskan waters.
• Upgraded watermaker pressure pumps
• Steering gear, including ram cylinders and emergency tiller
• New AGM house and start batteries 2021
• Dual cockpit access hatches

Main Engine (3850 hours)

• Detroit Series 60 diesel rated at 400 hp continuous duty, with Twin Disc 3.43:1 reduction gear
• Air-Sep crankcase ventilation system
• DDEC IV electronic controls at (6) stations:  pilothouse, flybridge, cockpit, port and starboard on the portuguese bridge, and engine room
• Diagnostic Link Kit
• Dripless seal on main engine shaft
• Spurs line cutter on main engine shaft
• Has clutched PTO for the hydraulic system

Wing Engine (500 hours)

• Lugger L1064A (140hp) with dedicated shaft and Gori 3-blade folding propeller
• Has clutched PTO for ABT hydraulic system
• Twin disc electronic dual station controls (pilothouse and flybridge)
• 25 gallon dedicated day tank for isolating filtered fuel, may also be run directly from engine room main supply tank
• Spurs line cutter on wing engine shaft

Spares

• Main and Wing Engine Spares

Fuel Tankage

• Four fuel storage tanks of FRP construction coated with fire retardant material
• Nordhavn gravity-feed fuel system to supply tank using Aeroquip hoses and fittings:  1 - 1/2” hose from main tanks to supply reservoir, ¾” from supply reservoir to main engine filters
• Fuel transfer system with inline Racor filters

Oil Change System

• Plumbed to main, wing, and (2) generator engines with Aeroquip hose and fittings
• New oil tank located in lazarette – 50 gallons
• Used oil tank located in lazarette – 50 gallons

Steering System

• Kobelt Hydraulic
• Bypass valve on cylinders
• Emergency tiller

Thrusters - ABT

• 38 hp bow and stern thrusters in 12” tunnels, proportional controls at (5) stations

Stabilizing System - ABT

• TRAC 370 system actuators with 16 sq. ft. fins
• “Flopper stopper” system provided for stabilization at anchor

Air-Conditioning System

• Seven independent zones - 72,000 btu to guest cabins, master stateroom, galley/salon, pilothouse, engine room/laundry room
• Exhausts through plenums incorporated into high soffits for reduced noise and maximum dispersion

Heating System

• Kabola diesel heating system each zone has separate temperature and fan controls, pilothouse also has defrost vents for windscreens – delivers heat pleasantly and quietly from registers low in the living spaces.  Especially well-suited to Northwest and high-latitude operation

Water Maker

• Village Marine Tech 84 Gals/hr. with freshwater flush and large media (sand) filters, essential for minimizing pre-filter changes and maintenance in the plankton rich waters of the Pacific Northwest.

Central Vacuum System

• Nutone – installed in engine room with sweep outlet in galley

"Windflight" has multiple systems: fresh water, black water, and grey water tanks are all constructed of vinylester resin laminated fiberglass formed over male molds to ensure that the interior surfaces are smooth to avoid trapping contaminants.  Each tank is fitted with a large inspection port and interior baffles.

Fresh Water System:

Fresh water capacity of 673 US gals. is split between two tanks and water distribution is directed via a stainless steel manifold in the forward machinery space.  The system has also been retrofitted with a very robust commercial pressure pump.

The galley is fitted with a Seagull X-1F water filter.  The system also includes a UV treatment system.

The system is also fitted with a polishing loop by which water can be filtered by circulating it from one tank to another, or back to the original tank, through a filter.

 The hot water side of the system includes a 50 gal. Torrid water heater fitted with two heating elements – one at 1,500 watts and one at 4,000 watts, in addition to the ability to heat water via engine waste heat, and Olympia boiler system heat running through the hot water tank heat exchanger.

 The hot water system also has an integrated re-circulation pump system to minimize the time and water usage required for delivery to each fixture in the living spaces.

Gray Water System:

The gray water tank capacity is 150 gallons.  It is plumbed to accept shower, sink, and other water where required, or may also be discharged overboard where permitted.

Black Water System:

The toilets throughout the interior are Tecma “Silence-plus” macerating type.  Normal operating configuration would have the valves aligned to direct the discharge into the black water tank, which has a capacity of 150 gals.  In addition, the plumbing is configured so each toilet can also be discharged directly overboard where permitted.  The contents of the black water tank may also be configured to discharge overboard where permitted.

Fire Suppression:

Engine Room:

• Seafire fixed automatic extinguisher – FE-1500-M with manual cable
• Seafire automatic engine shutdown system for main engine, generators, engine room blowers, fire/smoke dampers

Lazarette:

• Seafire model FD-700-A fixed automatic extinguisher
• Seafire discharge alarm

Forward Bilge:

• Seafire model FD-300-A fixed automatic extinguisher
• Seafire discharge alarm

Portable Extinguishers:

• Located throughout the boat

Life Saving:

• 8-Person Elliott Raft
• Lifesling
• Epirb

• Trinka dinghy with 2hp Yamaha outboard and custom cover
• 15’-6” Novurania inflatable tender with 70hp Yamaha outboard and custom cover
• Canvas exterior table covers
• Additional stainless steel grill with rail mount on upper deck
• High pressure freshwater washdown system
• Extensive additional spares
• Nordhavn “as-built” Owner’s Manual, including plumbing and electrical drawings – the best in the industry
• Service logs available

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
